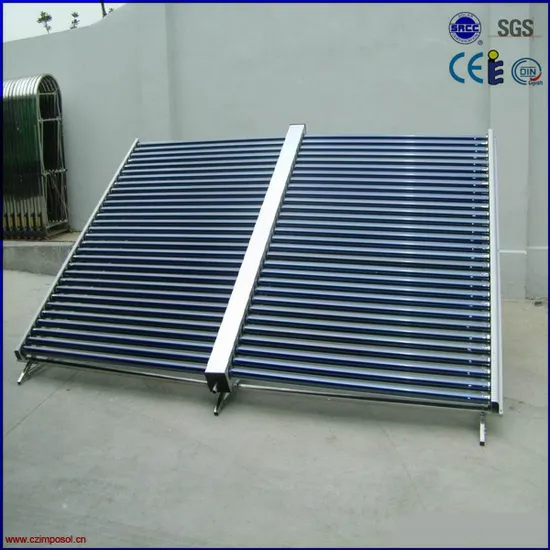

2016 Oxygen Free Evacuated Tube Solar Collector

Product Description

Main specifications
Inner manifold:copper header pipe(ASTM:C1100,DIN:ECu-58);potable water rated.Maximum pressure:800kPa

Vacuum tube:Borosilicate 3.3 twin wall all glass 58*1800mm, high efficient coating, vacuum:P<5*10-3 Pa

Heat pipe: high purity "oxygen free" copper(ASTM:C10200,DIN:OF-Cu), startup temperature: ~30deg

Outer manifold: 5005-H16 Aluminium with Anodized or Powder Coated Finish or 304 stainless steel

Insulation: high quality glass wool (K=0.043W/mK), average>50mm

Frame: 202 stainless steel or 6005-T5 Aluminium Alloy

Connection: 22mm OD copper(Europe)

Rubber components: HTV Silicone Rubber(UV stabilised)

Reflector: Aluminum component/stainless steel

model	lighting area()	vacuum tube			supply water capacity(liter)	20GP/40HQ Loading Qty(sets)
		Φ(mm)	L(mm)	Qty(pcs)
IPRB A(B)581810	1.4	58	1800	10	85-100	174/423
IPRB A(B)581812	1.68	58	1800	12	100-120	153/372
IPRB A(B)581815	2.1	58	1800	15	125-150	128/311
IPRB A(B)581818	2.52	58	1800	18	150-180	102/251
IPRB A(B)581820	2.8	58	1800	20	170-200	95/230
IPRB A(B)581824	3.36	58	1800	24	200-240	82/200
IPRB A(B)581825	3.5	58	1800	25	210-250	79/192
IPRB A(B)581830	4.2	58	1800	30	250-300	67/163

Automatic Workshop
1.Modern workshops have advanced production lines and professional knowledge of assembly.
2.Flow card to record each details carefully.
3.100% self-inspection before packing.
Advantages
1.Economic and practical products from Sunlight , reliable performance.
2.Choose Sunlight, choose a rest assured.
3.Advanced production lines and test rooms.
4.Perfect QCP.(Quality control plans)
Application: car, truck, bus, cooler room
Packaging & Shipping
Strong packaging to ensure safety during transportation.
Export wooden box packaging for products.
FAQ
Q1.Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2.Can I add my logo on the water tank?
A:Yes,OEM and ODM are available for us.But you should send us LOGO image.
Q3. How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.If it is the men-made problems,we also send the spare parts,but you should pay.
Q4.Do you have inspection before delivery?
A:100% self-inspection before packing
Q5.Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.Here is our factory address:No. 5 Shengda Road, Konggang Industrial Park ,Luoxi Town, Xinbei District, Changzhou City, Jiangsu Province China.
Basic Information
Product/Service (We Sell):Solar Water Heater
Brands: IMPOSOL
Number of Employees:51 - 100 People

---
