Compact Type Paper Cup Making Machine

Product Description

1)Introduction

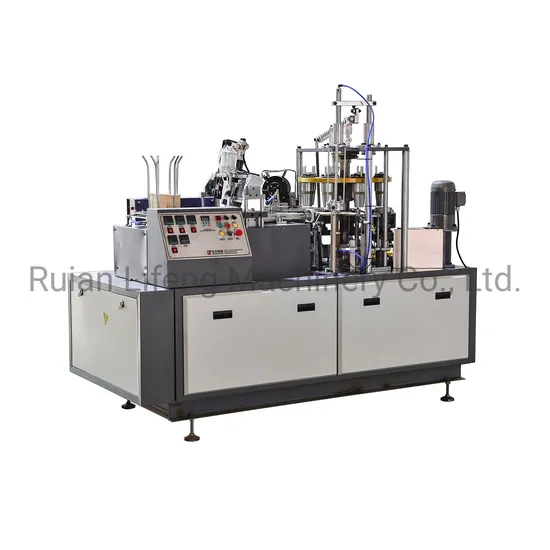

LF-80 full automatic paper cup forming machine is a multi station full automatic machine producing to make drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine has full-automatic lubrication.
2)Features
a. Machine Main part uses the Geneva open cam, instead of old dividing box transmission, makes driving more accurate, faster, and more reliable stability
b.Machine bottom is made by CNC machining, shaped in one-piece, the thickness is more than other suppliers' and it is heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can't go to driving system
c. The bottom paper feeding is adopted Two channel sending system, first use stepper motor transport, second adopt stepper motor precision feeding, to ensure accuracy and avoid waste. For old design, will have high waste also will produce much scraps of paper during production.
d. This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil.
e. The main motor with brake, can set the testing stop positioning, debugging positioning to be higher precision, also to ensure the safety of debugging person.
3)Machine Technical Parameters

General power	8kw
Voltage supply	220v50hz/380v50hz or customized
Cup size	1.5-12oz
Speed	80-90pcs/min
Weight	2000kgs
Measurement	2300*1150*1600mm
Paper request	150-350g/m² (single PE paper)
Paper cup top diameter	Min 35mm-Max 82mm
Paper cup bottom diameter	Min 30mm-Max 52.8mm
Paper cup height	Min 30mm-Max 110mm

4)MAIN PARTS LIST

NO.	Description of the equipment	Brand/ Specification / Model ,
Electric Appliance	Transducer	Quanzhou Sanqi
	Contractor	China CHNT
	Temperature controller	Shanghai YATAI
	Motor	Zhejiang MAILI
Machine appliance	Chain	China-Hangzhou DUNPAI/ZIQIANG
	Axis	45# steel
	Guide Post	CR15
	Cylinder	80*125 China YIDA
	Cam	45#
	Bottom cutter	CR15
	Knurling seat	CR12
	Knurling wheel	40CR
	Bearing	5204,5203,32008/Japan-NJK
		6201/ China-heerbin

5)AFTER SERVICE:
1. Paper Cup making Machine warranty: 1 year
2. the guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, adjustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole lesson!
6. we supply the consumable spare parts for free for one year

---
