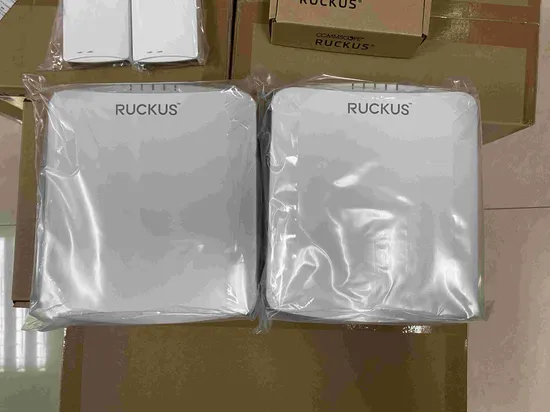

Ruckus R750 Indoor Access Point

Product Description

The RUCKUS R750 is based on the latest Wi-Fi 6 standard and bridges the
performance gap from 'gigabit' Wi-Fi to 'multi-gigabit' Wi-Fi in support of the
insatiable demand for better and faster Wi-Fi. The R750 is the first Wi-Fi 6 AP to
be certified by Wi-Fi Alliance as Wi-Fi CERTIFIED 6. As part of the Wi-Fi Alliance
testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial
streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities,
efficiently manages up to 1024 client connections with increased capacity, improved coverage and
performance in ultra-high dense environments.
The R750, with OFDMA, TWT and MU-MIMO capabilities, efficiently manages up to 1024 client
connections with increased capacity, improved coverage and performance in ultra-dense
environments. Furthermore, multi-gigabit Ethernet ensures the backhaul is not a bottleneck for full
use of available Wi-Fi capacity.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and
many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate
network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless
convergence.
The R750 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R750 is a
converged access point that allows customers to seamlessly integrate any new wireless technologies
with our USB port.
The R750 addresses the increasing client demands in transit hubs, auditoriums, conference centers,
and other high traffic indoor spaces. It is the perfect choice for data-intensive streaming multimedia
applications like 4K video transmissions, while supporting latency sensitive voice and data
applications with stringent quality-of-service requirements. The R750 is also easy to manage through
RUCKUS physical and virtual cloud management options.
The R750 when paired with the RUCKUS Ultra-High-Density Technology Suite found only in the
RUCKUS Wi-Fi portfolio, dramatically improves network performancethrough a combination of
patented wireless innovations and learning algorithmsthat includes:
· Airtime Decongestion: Increases average network throughput in heavily congested environments
· Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
· BeamFlex®+ Antennas: Extended coverage and optimized throughput with patented multi-
directional antennas and radio patterns
Whether you are deploying ten or ten thousand APs, the R750 is also easy to manage through
RUCKUS' physical and virtual management options.
DATA SHEET
RUCKUS R750
Indoor Wi-Fi 6 (802.11ax) Access Point for Ultra-Dense Environments
WI-FI
Wi-Fi Standards · IEEE 802/11a/b/g/n/ac/ax
Supported Rates
· 802.11ax: 4 to 2400 Mbps
· 802.11ac: 6.5 to 1732 Mbps
· 802.11n: 6.5 to 600 Mbps
· 802.11a/g: 6 to 54 Mbps
· 802.11b: 1 to 11 Mbps
Supported Channels · 2.4GHz: 1-13
· 5GHz: 36-64, 100-144, 149-165
MIMO · 4x4 SU-MIMO
· 4x4 MU-MIMO
Spatial Streams · 4 for both SU-MIMO & MU-MIMO
Radio Chains and Streams · 4x4:4
Channelization · 20, 40, 80, 160MHz
Security
· WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic
PSK, OWE
· WIPS/WIDS
Other Wi-Fi Features
· WMM, Power Save, Tx Beamforming, LDPC, STBC,
802.11r/k/v
· Hotspot
· Hotspot 2.0
· Captive Portal
· WISPr
PERFORMANCE AND CAPACITY
Peak PHY Rates · 2.4GHz: 1148 Mbps
· 5GHz: 2400 Mbps
Client Capacity · Up to 1024 clients per AP
SSID · Up to 31 per AP
OPTIONAL ACCESSORIES
902-0180-XX00 · PoE Injector (60W)
902-1170-XX00 · Power Supply (48V, 0.75A, 36W)
902-1180-XX00 · Multigigabit PoE injector (2.5/5/10)-BaseT PoE port, 60W
902-0120-0000 · Spare, Accessory Mounting Bracket
902-0195-0000 · Spare, T-bar ceiling mount kit for mounting to flush frame ceiling

---
