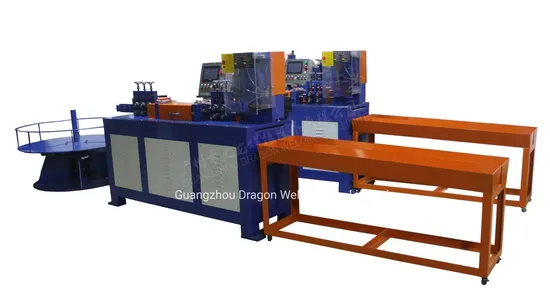

Automatic High Speed Wire Straightening and Cutting Machine

Product Description

Wire Ring Making and Welding Machine
Description
Wire straightening and cutting machine includes two types: traditional wire straightening and cutting machine, high speed wire straightening and cutting machine.now we specially recommend our high speed wire straightening and cutting machine.
Main Features High-speed wire straightening and cutting machine is also called wire straightening machine,or wire cutting machine, mainly used for straightening and cutting off various metal wires, such as stainless steel wire, aluminum wire, cold wire drawing, steel wire and so on. Adopting CNC length adjustment,compared to the traditional gun-type positioning cut, this paragraph is more accurate. The servo motor is used for speed cutting and continuous automatic cutting operation, which solves the situation that the traditional straightening and cutting machine blocks the material when cutting. The incision is neat and the speed is super fast, which is more than 5 times of the traditional machine, achieving high quality and high efficiency. The straightening part is composed of a straightening wheel, a straightening pressing block, and a bearing block at both ends, which can complete the straightening work of the wires of various sizes, and has a fast speed and a good straightening effect. Main Technical Parameter

Model	GTZ 1.0-2.5	GTZ 3.0-5.0	GTZ 5.0-7.0
Diameter of wire	1.0-2.5mm	3.0-5.0mm	5.0-7.0mm
Input Voltage	3P 380V 50HZ
Application	All kinds of metal wires
Cut Length	Can set any length according to customers' requests
Speed	20-120 m/min
Output	400 pcs/min
Inaccurate	±0.3mm
Power	5.5KW	11.0KW	15.0KW
Dimension	1500*800*1250	1860*885*1370	2300*900*1550
Weight	300KG	500KG	700KG

Application
Mainly used for straightening and cutting off various metal wires, such as stainless steel wire, aluminum wire, cold wire drawing, steel wire and so on.
Our Company
GUANGZHOU DRAGON WELDING CO.,LIMITED is a professional automatic welding equipment manufacturer,which specializes in designing,producing,sale and service together.
Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three-phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,Ring Making and Welding Machine,2D Wire Bending Machine, High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipment.
Packing and Delivery
Our high speed wire straightening and cutting machine will be strictly inspected before packing and shipping out to insure that they could be satisfied with you, and our packing box is very strong.
Successful Case
1 Guangzhou Dragon Welding Co. Ltd was one welding machines manufacturer in China.
2. Strong professional technical team and design team ensure to produce welding machines with top quality.
3. Rich experience on manufacture field with more than 20 years export experience.
4. We provide OEM, ODM service, you could let us know all requirements, our design team and technical team will produce them according to your requirements.
5. We provide samples welding service and good after-sales service.
Licenses and Qualify
FAQ
Q1: What does your factory produce ?
A: We produce and export all kinds of automatic welding machines and wire forming machines. We also
can design and develop the welding machines according to your requirements.
Q2: What about your standard delivery date ?
A: Usually 10-20 days. Our company provide just-in-time delivery
Q3:Do you sale welding electrodes ?
A:YES,you can buy welding electrodes from our factory or in your local market.
Q4: Do you have CE Certificate?
A: YES,we have.
Q5: Can you export machines by your factory?
A; YES,we can.
Q6: Where are your factory?
A: Our factory located in Guangzhou City, Guangdong Province, China.

We will provide same good after-sale service as the pre-sale service, any of your questions,
we will be replied within 12 hours.

---
