Hydraulic Polyurea Waterproof Swimming Pool, Wear-Resistant Spray Equipment Fd-511

US$6,500.00-7,000.00 1 unit (MOQ)

Basic Info.

Model NO.
FD-511
Type
Hydraulic
Raw Material
ISO/Poly
Principle
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Transport Package
in Wooden Cases
Specification
packed size: 110*87*136cm
Trademark
SJSPRAY
Origin
China
Production Capacity
50000pieces/Year

Packaging & Delivery

Package Size
115.00cm * 86.00cm * 140.00cm
Package Gross Weight
350.000kg

Product Description


Product Description
"Our mission is simple: making homes and businesses as comfortable, energy-efficient, and safe as possible. If you want to save money, stay warmer in the winter and cooler in the summer, or create a safer indoor environment, we have the products, equipment, and trained experts who can make it happen.

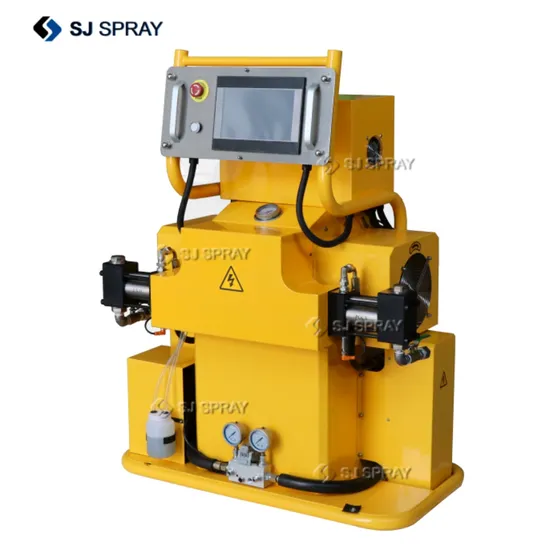

Hydraulic Pu Foam / Polyurea Spray Machine FD-511 is a hydraulic driven polyurethane polyurea spray machine.
It has the characteristics high working pressure, stable pressure and large spray output.
It is especially suitable for large-scale spraying construction.
Product Parameters
Project FD-511
Data ratio of raw materials 1: 1 (fixed)
Raw material viscosity range 200-1000CPS (at working temperature)
Max Working pressure 35MPa (350 bar)
Maximum Fluid Temperature 88 ° C (190 ° F)
Maximum output 24kg/min (42 lb/min)
Gun Type Spray/Injecting
Heating hose power 1000W / 15m
Total power 21000W
Voltage 230V 1-ph / 3-phs 380V/400V 3-ph
Machine size 870mm * 700mm * 1150mm
Gross weight 350KGS
Net weight 300KGS


Standard configurations
Slef-cleaning spray gun 1 unit Transfer pump 2 unit Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.
Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
