X5750 X5750A Universal Swivel Head Dro Milling Machine

Product Description

Product Description

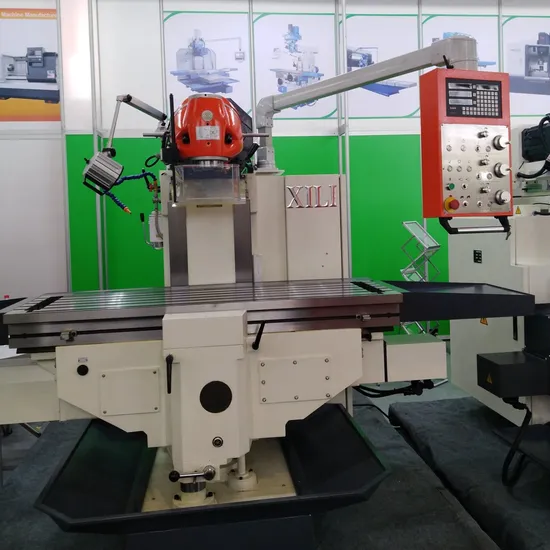

X5750 X5750A Universal swivel head DRO Milling Machine
large work-table, long travel double-supporting-column design, heavy load capacity servo motor driven sliding ram, very long travel in Y-axis 27 speeds spindle, gearbox driven directly, large speed range for powerful milling universal 360° swivel head can process any angle surface table feeding with 3 separate servo motors, variable speeds, high accuracy, low noise 3-axis ball screws for precise feeding 3-axis E-handwheels on control panel, easy manual control of work-table Detailed Photos
This universal ram type milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring. Flat, slant, vertical surfaces cutting and slotting can be done with formed cutter or face mill. Cutting of circular slots and curves can be done with rotary dividing table.
The high duty ram milling machine easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.


Product Parameters

Items	X5746	X5750	X5750A
Working area
Table size	1235x460mm	1600x500mm	2000x500mm
T-slot (width x No. x pitch)	18mmx5x80mm
Max. load of table	800kg	1800kg
Distance from spindle nose to table surface	58-508mm	50-550mm
Distance from spindle center line to column	20-670mm	45-745mm
Travel
Longitudinal travel of X axis	900mm	1200mm	1400mm
Cross travel of Y axis	650mm	700mm	700mm
Vertical travel of Z axis	450mm	500mm	500mm
Spindle
Swivel angle of milling head	360°	360°	360°
Spindle taper	ISO40	ISO50	ISO50
Vertical spindle speed /step	30-2050rpm
Vertical spindle speed step	27 steps
Main motor power	5.5kW	7.5kW
Feed
Feed speed and step of X/Y axis	10-1000mm/min	10-1000mm/min	10-1000mm/min
Feed speed and step of Z axis	6-640mm/min	5-500mm/min	5-500mm/min
Rapid traverse of X/Y axis	2200mm/min
Rapid traverse of Z axis	1100 mm/min
AC servo motor torque of X/Y/Z axis	X/Y:18Nm Z:27Nm
Others
Overall dimension	2527x2035x1990mm	2625x2460x2080mm	2625x2860x2080mm
Net weight	3600kg	4200kg	4500kg

Optional:
Package:
Certifications
We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.
Company Profile
Shandong Xili Machine Tool Co., Ltd. and Tengzhou Xili Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.
Hope we can built long-term business relationship with you.
Our Advantages
1.More than 20 years experience for indusry product;
2.All modles with CE,TUV,SGS,ISO9001/9002 and other authority approved;
3.Professional service and technology;
4.Excellent reputation all over the world;
5.Final exported producuts would pass strict test by international authority BIVAC;
6.There is more exporting experience for 20years with our owned manufacture company.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service * Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
