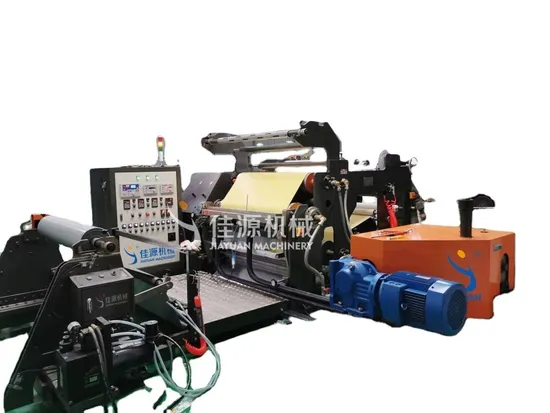

Based Waterproof Butyl Rubber Leak Tape Customized Automatic Coating Machine

Product Description

Butyl Rubber Coating Line Machine Waterproof Bitumen Leak Proof Tape Customized Automatic Production PVC Machine

Main Description:
JYT-B hot melt coating machine is suitable for producing self-adhesive paper, paper label, film label, adhesive label, double-side tapes, duct tapes, double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu. Foil tapes, fabric tapes, shoes materials and medicine dressing tapes, etc.

manufacturer	Ruian City Jiayuan Machinery Co.,Ltd.
After Servuce	one year guarantee
Product Name	Automatic butyl extruder machine
Coating Width	400-3000mm
Coating Weight	100-6000gsm
Coating Speed	1-50m/min
Unwind Diameter	1000mm
Rewing Diameter	700mm
Correction Device	1sets
Length	7500mm
Height	1600mm

Main characteristic:
1. the speed of main machine and quantity if glue feeding are automatic synchronous tracking and manual control.
2. machine are equipped with automatic tension controllers for un-winders and re-winder.
3. filters adopt automatic netting changing technology to reduce blockage.
4. coating head adopts high precision alloy steel, which can make sure good coating result when machine is working with high speed.
5. extend disance between coating device and compound, it suits some material which can not bear high temperature.

Main characteristic:
1. An AC converter control is used for both speed and quantity of glue feeding for which both automatic synchronous tracking and manual control are available.
2. Hot melt coating machine adopts intelligent PID temperature control system, it can control the temperature exactly and the tolerance is with in 1 celsius degree
3. The glue melting oven is coated with the antisticking layer, efficacious prevent the hot melt adhesive against carbonization.
4. Collocate the precision metric gear, make it more steady to produce the adhesive.
5. The high precision of alloy steel spray head has guaranteed high-quality coating result.
6. High-efficiency cooling device insure the applicable range of the basic materials.
Technical Parameter:
Coating Width 400 -2000mm
Coating Weigh 10 -200g / m
Coating Speed 50m/min
Unwind Diameter 1000mm
Rewind Diameter 700mm
Length: 5000mm
Height: 1400mm Please note: above is standard parameter, we can customize machine according to customer's requirement.
1. Q: How about the after-sales service?

A: Our machines have one year guarantee, life-long maintenance.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.

2. Q: Are you a factory or trading company?

A: We are a factory in this field nearly 10 years.

3. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly or take train to Ruian Station.

4. Q:How does your factory do regarding quality control?

A:Quality is our invariable topic,it is the basement of company's development.From the beginning of opening company,we especially focus on quality job.Our hotmelt adhesive coating equipment have passed CE and SGS certification.

5.Q:What information should I let you know if I want to get quotation?

A:-the details of your products,such as substrate,adhesive material,coating width etc.
-if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.

Should you have some other details not sure? such as videos,specification, components, working process, payment terms etc, please don't hesitate to contact us

---
