Basic Info.
Model NO.
Fiber Cement Board
Ceiling Tile Shape
Square
Function
Fireproof Board Ceiling, Soundproof Ceiling, Normal Ceiling, Moisture-Proof Ceiling
Application
Public, Household, Office, Hotel
Install Fitting
with Galvanized Keel or Wood Keel
Applications
for Ceiling and Wall/Partition
Standard Size
1200/1220*2400/2440*3.5~15mm
Delivery Schedule
with Stock and Can Be in 5 Days After Full Payment
Transport Package
Wooden Pallet
Specification
Made by sand, fiber, cement and etc.
Origin
Foshan, Guangdong, China
Production Capacity
1000000 Square Meter Per Month
Packaging & Delivery
Package Size
245.00cm * 125.00cm * 72.00cm
Package Gross Weight
2850.000kg
Product Description
Introduction 1. Calcium Silicate Board/Fiber Cement Board is 100% Non-asbestos, which is made by cellulose, sand, cement, mica and others material. It is a ECO-friendly building material for ceiling & wall/partition system. 2. Production Process: Mixed raw materials - production of board - high temperature and high pressure processing - Drying - Edge & surface processing - package
3. Characteristics: 1.Light weight with medium density; 2.Good fireproofing and thermal insulation; 3.Fire - resistant limit reaches 1h or more( if it is on fire, produces no smoke) 4.Moisture-proof; 5.Shockproof; 6.Undamaged by insects and rodents; 7.Easily constructed; 8.Good sound absorption( insulates against sounds of up to and over 40dB) 4. Application:
A. Ceiling and wall/partition board of the buildings, such as office buildings, residential buildings, commercial buildings, schools, airports, railway stations, research institutions, cinemas, hospitals, gyms and KTV rooms, etc.
B. Damp area interior wall.
C. Loading Q'TY , 1220*2440*9mm 588pcs/8 pallet/1*20GP/23~24T with wooden pallet.
1220*2440*9mm 670pcs/1*20GP/ 26~27T without package , loading by hand.
5. Our certificate:
We have ISO 14001:2015, ISO 9001:2015, BS EN 12467:2012+A2:2018 and China Environmental Labeling Products Certificates, etc.
6. Company profile:
Foshan Olar board Co.,Ltd. is a manufacturer. It is established in 2005, located in the southern side of He'he Avenue, Mingcheng, Gaoming, Foshan, Guangdong, China.
The products of Olar have taken 90% domestic market share. What is more, they have been delivered in large quantily to many European countries like Italy, Sweden, Norway, Russia, UK, Spain, Poland and many other countries in Southeast Asia and Middle East.
The reliable quality and reasonable price of the products have earned us recognition and well favor from the customers in both domestic and overseas market.
CE Certification of Calcium Silicate Board for Ceiling and Wall/Partition,Fiber Cement Board |
Specification | Standard Specification: 1220/1200*2440/2400/3000*3.5~15MM |
Tolerance: Length/Width:±3mm; Thickness:±0.3mm; Edge Squareness :≤3mm/m; Diagonal Difference:≤4mm |
Appearance | Surface:Un-sanded / Sanded |
Edge:Square / Recessed |
Physical Properties | Density: Medium Density 1150~1300KG/M 3 |
Bending Strength(DRY) : Cross: 9~11MPa; Parallel: 5~7MPa |
Moisture Movement: ≤ 0.25% |
Water Absorption: ≤ 42% |
Moisture Content: ≤ 12%(Under EMS condition) |
Thermal Conductivity: ≤0.22w/(m*k) |
Non-combustibility: GB 8624-2006 Grade A1, BS 476-4 Grade A |
Excellent Characteristics | In-combustibility, High Bending Strength, Thermal Insulation, Fire Resistant, Sound Insulation, Moisture-proof, Shock Resistant, Durability, Long service life, etc. |

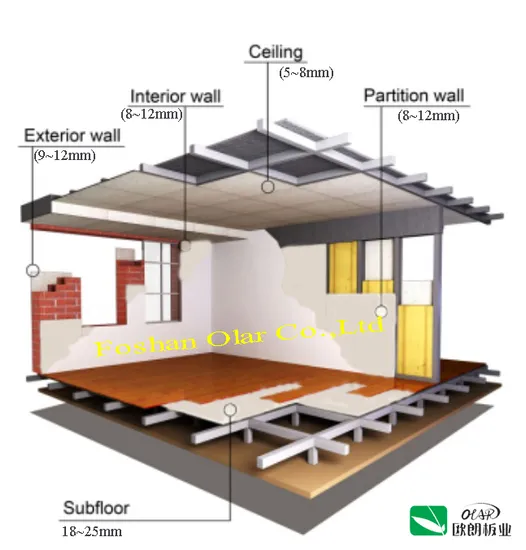

Application | 4.5~6mm: for Interior Ceiling; 6~9mm:Fire Door Core; 8~15mm: for in Interior Partition. |
Products Warranty | More than 20 years |
Any questions or more information, Pls feel free to contact with us:
Contact person: Yuan Chen
