High-Quality Image Full Resolution USB Camera Module Mini Camera

Product Description

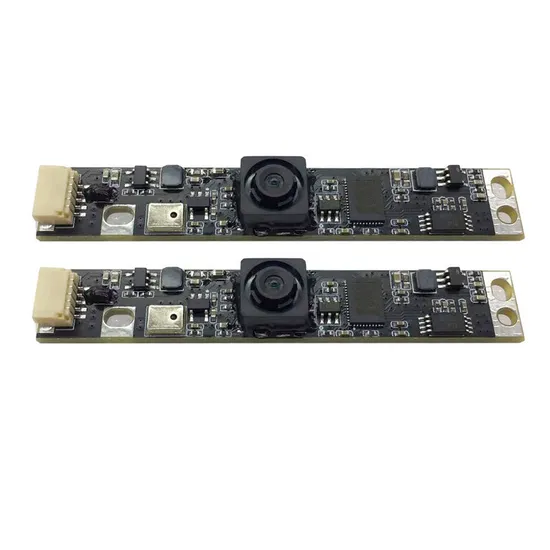

5.0 Megapxiels HD USB 2.0 Imaging Board Camera (SX-6500G)
*Wide VGA-2Megapixels: Large field of view, smaller defect detection and improved precition
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects
Specifications:

Module NO.	SX-6500G
Module Size	60mm*8.5mm*6.7mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fix
Resolution	2592*1944
PCB printing ink	BLACK
interface	USB 2.0
Power	USB BUS power
Power consumption	400mW
Operating system request	Win 2000,Win XP,Win 7,Win 8 Linux2.6.20 above ver.
Pixel Size	1.4µm*1.4µm
Maximum Image Transfer Rate	10 fps for 5-megapixel;
S/N Ratio	36dB
Dynamic Range	72dB
AGC/AEC/Whiter balance	Auto
Output Formats	YUV/MJPG
Lens Construction	M7

---
