Heat Transfer Paper Automatic Screen Printing Machinery Hy-H56 Label Packing Printer Silk Screen Printing Machine Packing Label Silk Printer Machine

Product Description

Description:
A new type of machine that replaces the flat-lift semi-automatic screen printing machine realizes automatic feeding, automatic alignment, automatic printing, automatic screen printing with automatic feeding; Touch screen control, easy to learn, reducing labor intensity and operation The technical requirements of the machine allow the machine to guarantee the printing speed and precision, and achieve a more stable printing effect; It has the advantages of automatic labor saving and the flexibility of semi-automatic small batch; The original semi-automatic machine screen version can be continued to reduce the cost investment.
Printing speed of 900 sheets / hour, repeat positioning accuracy of less than 0.05mm, can be equipped with tunnel dryer, UV light fixture, paper clip dryer
Suitable for transfer paper, membrane switch, packaging, signage and other industries.
Printing technical parameters:

Model	HY-H56
Max. Printing Size	500×600mm
Printing Speed	800PCS/h
Max. Screen Frame Size	750×1030mm
Print Thickness	0-1mm
Printing Table Size	590×860mm
Repeated Positioning Accuracy	<0.02mm
Squeegee Skewness	0-30º
Screen Vertical And Horizontal Adjustment	±10mm
Power Supply	3N-50Hz 380V 3KW
Air Source Pressure	0.4-0.6MPa
Overall Dimensions	L2400×W1200×H1700(mm)
Weight	880kg

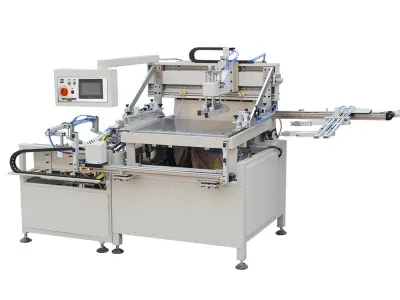

Machine Photos:
Print sample details
Certificate
FAQ
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design, production, development, sales in one, to "practical, innovative" for the purpose, to "integrity, pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority of customers.
About us
Shijiazhuang shenghui machinery technology Co., Ltd. is a company specializing in the production and sales of automatic and semi-automatic plane screen printing machines. The technicians include experienced engineers who have been engaged in the design and production of screen printing machines since the early 1990s, as well as highly educated new technical personnel who have just left school. Out of a commitment to research and innovation of science and technology route.
Now the company has more than 20 screen printing machine invention and utility model patents, and there are new patents in the application. Our self-developed automaton not only realizes automatic feeding and material taking, but also can automatically complete precise Counterpoint printing by the machine, which can be comparable with expensive CCD machine. The new concept of automatic screen printing machine fills the technical gap and solves the problem of shortage of skilled workers. Since entering the market, it has triggered a wave of upgrading of printing equipment, which is favored by many new and old customers.
Now the company's products have been served in Thailand, Vietnam, India and other customers, in 2019 the company will bring their own more mature products and services, screen printing enterprises for more countries to make beautiful products.

---
