Hydraulic Hot Press Machine for Construction/Furniture/Aviation/Film Faced Plywood Widely Used

Product Description

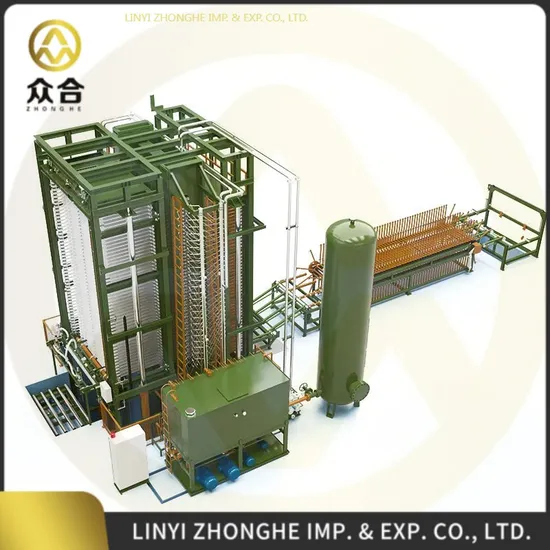

film faced plywood hot press machine


Detailed Photos

Product Parameters

500Ton Hot Press Machine
Pressure	500tons
Layers	15Layers
Hot platen distance	70mm
Hot plate qty	16pcs
Heating platen size	2700*1370*42mm
Qty of Cylinder	2
Diameter of cylinder	360mm
Stoke of cylinder	1050mm
Upper ,bottom crossbeam	900mm
Thickness of main frame steel	35mm Q235
Overall dimension	3550*1370*4650mm
Weight	About 38Tons

600Ton Hot Press Machine
Pressure	600tons
Layers	10Layers
Hot platen distance	100mm
Hot plate qty	11pcs
Heating platen size	2700*1370*52mm(two inlet two outlet)
Diameter of cylinder	6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder
Stoke of cylinder	1000mm
Upper ,bottom crossbeam	900mm
Thickness of main frame steel	35mm Q235
Overall dimension	3600mm*1370mm*4200mm
Weight	About 42Tons

800Ton Hot Press Machine
Pressure	800tons
Layers	25Layers
Hot platen distance	80mm
Hot plate qty	26pcs
Heating platen size	2700*1370*42mm
Qty of Cylinder	4
Diameter of cylinder	320mm
Stoke of cylinder	2000mm
Upper ,bottom crossbeam	900mm
Thickness of main frame steel	40mm Q235/(4 groups frame)
Overall dimension	3600mm*1370mm*6720mm
Weight	About 86Tons

Factory Display
Packaging & Shipping

ABOUT US

FAQ

1. Q: How many years had your company been established ? A:We specilized in wood based panel machinery for 10 years. 2. Q:QUALITY CONTROL? A: Each machine will be tested three times before delivery. 3. Q:DELIVERY TIME? A: 30-90 days upon receiving deposit. 4. Q:Factory Layout Design? A:We have engineer team to make layout drawing for customers for free. 5. Q:PAYMENT TERMS? A: T/T, L/C D/P are accepted. 6. Q:MOQ?

A: 1

---
