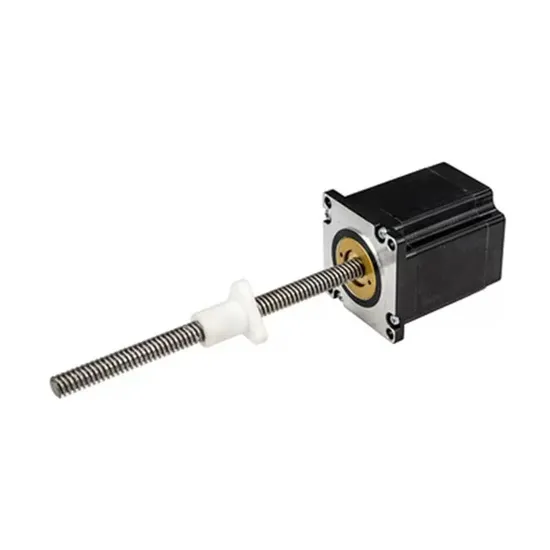

86mm Series Hybrid Lead Screw Stepper Motor -Captive Linear Actuator

Product Description

NEMA6 NEMA8 NEMA 11 NEMA 14 NEMA 17 NEMA 23 NEMA 34 NEMA42 Linear Stepping Motor, Linear Step Motor, Linear Stepping Motor, External Linear Actuator Electric Motor Product Description

1.Feature

Characteristic:

Step Angle Accuracy	±5%
Resistance Accuracy	±10%
Insulation Class	B
Inductance Accuracy	±20%
Temperature Rise	80°C Max
Ambient Temperature	-20°C~+50°C
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500VAC for one minute
Shaft Radial Play (450g-load)	0.02mmMax
Shaft Axial Play (450g-load)	0.08mmMax

2. Specifications
1) Linear Screw Parameters:

Lead Screw Diameter		Screw Lead		Travel per step @1.8 °(mm)	Travel per step @0.9°(mm)	Motor Size
(Inch)	(mm)	(Inch)	(mm)	(mm)	(mm)	(mm)
0.625	15.875	0.1	2.54	0.0127	0.0064	86
		0.125	3.175	0.0159	0.0079
		0.2	5.08	0.0254	0.0127
		0.25	6.35	0.0318	0.0159
		0.5	12.7	0.0635	0.0318
		1	25.4	0.127	0.0635

2) NEMA 34 86mm Series Hybrid Lead Screw Stepper Motor -Captive Linear Actuator

Model NO.	NEMA	Step Angle	Voltage	Inductance	# of Leads	Rotor gcm²	Motor Length	Weight
			/Phase	/Phase
		( °)	V	mH	No.	g.cm	(L)mm	Kg
LSG8676-6004	34	1.8	3	4	4	1300	76	2.4
LSG86114-6004	34	1.8	4.8	8.5	4	2500	114	5

Stroke Specification
3) Dimension
4. Application
4.About US
5.Main Products
6.Package and Shipping
1.FedEX / DHL / UPS / TNT for samples,Door to door service;
2.By sea for batch goods;
3.Customs specifying freight forwarders or negotiable shipping methods;
4.Delivery Time:20-25 Days for samples;30-35 Days for batch goods;
5.Payment Terms:T/T,L/C at sight,D/P etc.
7.FAQ
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.
If you are urgent to get the price, please send the message on skype and wechat or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. How about MOQ?
1 pcs for carton box.
Q5. What is your main market?
Eastern Europe, Southeast Asia, South America.
Please feel free to contact us if you have any question.

---
