whirlpool SPA hot tub bathtub edge cutting trimming machine equipment

Product Details

Product Description

Product Description
Detailed Product Description

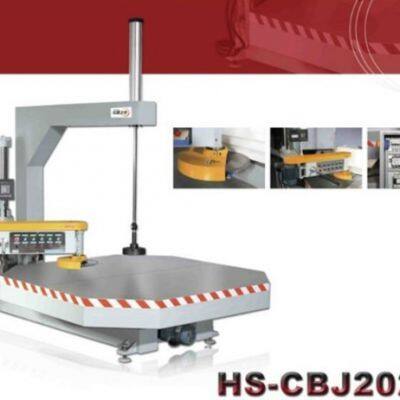

The detail information of the trimming machine:
The machine tool is a kind Of special equipment used for edge trimming of bathtub in steam room Its worktable can be classified into 2000×2000mm worktable and 2400×2400 worktable, which makes the product adapt to edge trimming of bathtub of different sizes. General grinding wheel blade, tdngsten carbide alloy saw blade and special diamond grinding wheel blade may be used, which makes it have wide application. Overall welding is applied and the worktable is given stress treatment. The process precision is high. There is no interface around the cylinder body. The machine bed can add tumbler digital readout device according to requirements of customers, which is the first choice for sanitary factory to update equipments.
Main technical parameter
1 Dimension working table (L×W)…………………………2000×2000(2200×2200 or 2400×2400)mm
2 Maximum distance between work table center to vertical arm………1500mm
3 Maximum distance between work table and pressure plate………….1120mm
4 Rotate speed of work table (adjustable)………………………………..0-2r/min
5 Maximum ascend and descend distance of the tumbler……………...50-400mm
6 Dimension of common used grinding wheel……………………………Φ400×Φ25.4mm
7 Rotate speed of main axis………………………………………………..3650 r/min
8 Power of main motor………………………………………………………N=3KW
9 Motor power of work table………………………………………………..N=0.37KW
10 Power of the maximal rising height of tumbler………………………..N=0.37KW
11 Operation power…………………………………………………………0.4～0.6Mpa
12 Appearance dimension (L×W×H)...............................................3280×2400×2850mm
13 Machine bed weight…………………………………………………1300kg
Detailed Product Description
How to make a good acrylic bathtub
First step: prepare for the making machines and molds
The acrylic bathtub making need the devices as follows,
1. acrylic bathtub vacuum forming machines--9800USD/set
2. bathtub forming molds(good designs)--about 850USD/set

Made in FRP materials, 2 years guarantee
3.resin mixer(thermostatic resin mixer)--2250USD/piece,simple mixer: 650USD
or
4. resin spray gun with fiber chopper(automatic)--5500USD/set

The details of the spray gun for fiber glass and resin are as follows,
Using material: calcium carbonate(CaCO3) powder,resin,solidifying chemical(catalyzer,catalyst)
1:Maximum injection: 15Kg/min
2:Resin injection: 3.5——5Kg/min
3:Fiber glass: 1.5Kg/min
4:Pressure ratio: 18:1
5:Range of pecentage of solidifying chemical: 0.8——3%
6:Working pressure: 0.3——0.6Mpa
-----------------------------------------------------------------
The spray gun advantages:
1.Accurate ratio control. Catalyst slave pump for exact catalyst ratio ensures the parts cured at desired rate.
2.Environment friendly. Airless spraying decreases the volatilization and less pollution.
3.Cart & System. The whole system is mounted on a cart chassis which makes the equipment moveable, benefits the spraying flexible.
4.Roving management. The roving is guided by the boom crutch to make the roving smooth, less tangling, more uptime.
5.Compact & light weight.
6.American Gun available.
7.One year guarantee.
5. bathtub edge trimming machine--5600USD/set
Turntable edge trimmer is used for cutting the edge of shower room and bathtub, adapt to bath ABS and Acrylic material.
Technical parameters:
A. Worktable dimension(L*W): 2000*2000or 2400*2400mm;
B. Max. Distance between work table center and vertical arm: 1000mm;
C. Mitsubishi Transducer control speed: 0-3r/min;
D. The data of cutting height is shown by electronic display, the max elevated range of the rick arm is 40-400mm;
E. Dimension of grinding wheel common used: 350*25.4.
F. Main axis rotary speed:3600r/min
G. Main motor power:0.75KW
H. Motor power of worktable:0.37KW
I. Power of tumbler(moving up and down):0.37KW
J. Working air pressure:0.25-0.45MPA
K. Overall dimension(L*W*H):3500mm*3000mm*3000mm
L. Weight:1400KG
6.bathtub making line conveyor
Second step: prepare for the bathtub making materials:
The acrylic bathtub need the materials as follows,
1. Acrylic sheets(you also can choose acrylic, ABS composite sheets)
The thickness: 2.3mm, 2.5mm, 3mm, 3.2mm3.5mm, 4mm, 4.5mm
Can be with colors
Acrylic sheets looks more bright

The acrylic sheets parameters:
Product Paramenters

Material	100% Virgin Misubishi MMA Imported Color Pasted UK PILKINGTON Mould
Production Process	Cast
Light Transmittance	93%
Thickness	2-40mm
Color	Customized(Like White,Black,Red,Orange,Yellow,Blue,Green etc.Over 60+ colors to choose)
Packing	Craft Paper Or PE Film
Certification	ISO,CE,SGS
Application	Bathtub/BathroomAdvertising/Decoration/Furniture/Display Stand/Acrylic Crafts and so on
Size	9602520,11001880,12302450,12501850,13202590,13701970,14702810, 15402460,15503050,15602550,16301730,16901910,17002450,17302530, 17902050,17901850,18101930,19401960,19402900,19602640,19702080, 20003000,20102220,20302360,20502550,21203120,2150*2150,etc. Support Customized

2. Resin
DC191, to make the reinforcement together with the fiber glass

3. Fiber glass
To make the reinforcement together with the resin
Specifications: 300G/M2, 250G/M2, or 400G/M2, or roving fiber

4. Stone powder(calcium carbonate powder, CaCO3 powder)
Mixed with resin, as the filling materials for the mixture of the resin and fiber glass reinforcement
With very cheap price, you can buy it in your own country
5. Catylist for the resin chemical action
The blue chemical(mixed with resin and stone powder) and the white chemical(add the white chemical when you want to spray the materials), with these two chemicals, the resin will turn into hard quickly.

Third step: connect the mold to the vacuum forming machine and make the vacuum formings,

Fourth step: rough cutting the bathtub edges and make the fiberglass and resin reinforcement:
The bathtub need the 3 layers of resin and fiberglass reinforcement.
The resin will turn into hard about 2 hours later, then can make the edge cutting/trimming.

Fifth step: make the bathtub edge cutting/trimming

For acrylic bathtub making skills technical training,
Please contact us:
Leo Wang (Export manager)
Mob/WeChat/WhatsApp: 0086-13867488227
Address: Yipeng Industrial Zone, Hangzhou City, Zhejiang Province, China
Web: Email: yeedshower@qq.com
