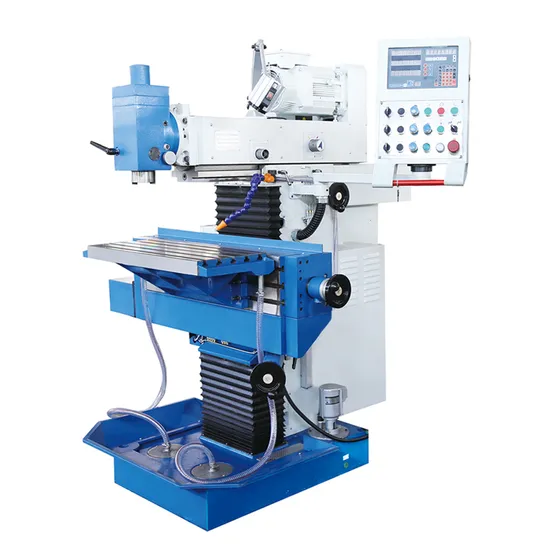

China Manufacture Horizontal and Vertical Table Universal Tool Milling Machine

US$17,350.00 1 unit (MOQ)

Basic Info.

Model NO.
UM300A
Type
Knee-and-Column Milling Machine
Object
Gear
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Name
Universal Tool Milling Machine
Horizontal Table Size
750X320mm
Vertical Table Size
890*225mm
Horizontal Table T Slot
(5)14*63
Vertical Table T Slot
(3)14*63
Table Travel
405X305X300mm
Distance Horizontal to Table
145-545mm
Distance Vertical Spindle to Table
50-450
Spindle Speed
40-2000rpm
Spindle Taper
ISO40
Spindle Motor
3.7lkw
Transport Package
Wood Case
Specification
ISO9001, CE
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

China manufacture horizontal and vertical table Universal Tool Milling Machine
FEATURES Hand wheel guarantees simple and precise feed settings Complete with manual, automatic and rapid feed in all three axis Central lubrication in guideways comes standard Clear design of speed and feed controls Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces Optimal adjustments of spindle speed and feed allow for economic machining of various materials Solid grey cast-iron machine base guarantees precision and minimizes vibrations Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc. Hardened and polished guideways guarantee top accuracy Tiltable vertical milling head with spindle adjustment and three automatic drill feeds
Specification Unit UM300A UM400A UM500
Horizontal Work space dimensions Mm 750*320 800*400 850*450
Vertical table dimensions Mm 890*225 1020*225 1190 * 250
T-slots,work table Mm (5)14*63 (6)14*63 (7)14*63
T-slots,vertical table Mm (3)14*63 (3)14*63 (3)14*63
Table load capacity Kg 160 200 300
travels Longitudinal(X) Mm 405 500 600
Transverse(Y) Mm 305 400 450
Vertical(Z) Mm 400 400 450
Spindle axis-to-table surface distance Horizontal spindle Mm 145-545 145-545 -
Vertical spindle Mm 50-450 50-450 -
Speed range Rpm (2)40-2000 (2)40-2000 (2)40-2000
Spindle mount ISO40 ISO40 ISO40
Feeds X Y Z axis Mm/min 10-1000 10-1000 10-1000
Rapid feed Mm/min 1200 1200 1200
Quill stroke Mm 60 60 60
Main motor rating KW 3.7 10-1000 10-1000
Feed motor rating N.M 7.7/7.7/10 7.7/7.7/10 2010/10/15
Dimensions (L*W*H) Mm 1500*1700*1800 1500*1700*1800 1600*1800*2000
weight Kg 1400 1500 1700
