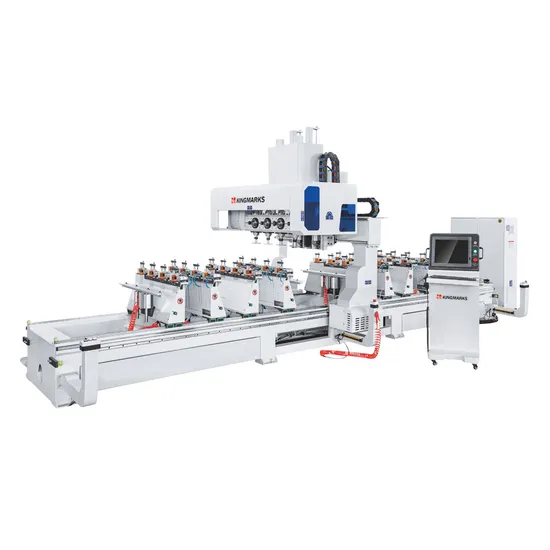

Gantry Tenon and Mortise Machining Center

Product Description

Product Description
This is a multifunctional CNC machine tool that integrates multiple types of tenon and tenon groove processing. Suitable for processing mortise and tenon structures such as mortise and tenon joints on inclined surfaces and curved surfaces at any angle.
Features:
1. The control system realizes high-speed interpolation, the connection speed between machining trajectories is high-speed and stable, the machining efficiency is high, and the machining effect is good.
2. Support intuitive element and module machining trajectory programming, meet the requirements of different types and sizes of mortise and tenon machining, easy to learn and use, and reduce the cost of equipment use manually.
Detailed Photos
Product Parameters

Model No.	KMSM4200-4*4
Max. Stroke of X axis	4200mm
Max. Stroke of Y axis	1000mm
Max. Stroke of Z axis	600mm
Max. Working width	205mm
Spindle wheel base	270mm
Max. Displacement speed of X axis	40m/min
Max. Displacement speed of Y axis	40m/min
Max. Displacement speed of Z axis	20m/min
Spindle speed	5.5kw/12000r/min 3.7kw/18000r/min
Spindle power	5.5kw*4 3.7kw*4
Total power	44.3kw
Net weight	4500kg
Overall size	6500*2100*2600mm

Packaging & Shipping
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.

---
