10-50kg Premade Bag SUS Frame Vertical Continous Band Sealer

Product Description

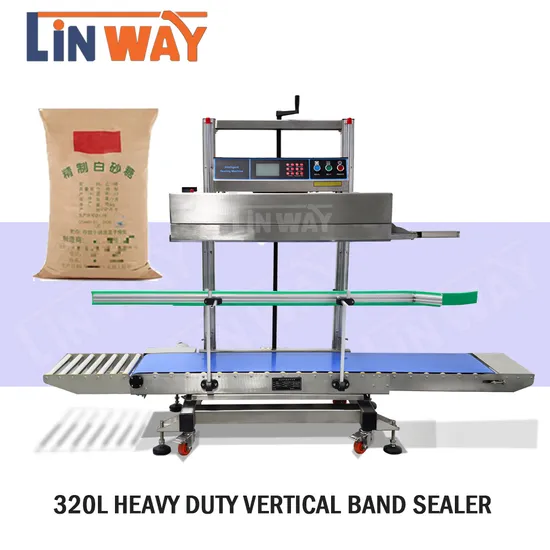

320L Heavy Duty Vertical Band Sealer Machine
OVERVIEW This new-developed heavy duty vertical band sealer is an intelligent sealing machine with double motor driving with up and lower belt moving system, adopt own R&D digital modular control board and precision temperature control to ensure low noise, stable and long-life performance. Ideal sealing solution for non-good or leak-sealing and short-life usage; Flexible tool free parts up and down, left and right with tilt angle adjustment for wide application. It is becoming very popular for various kind of plastic bag sealing, such as PE, laminated or Kraft aluminum, widely use for food, pharmacy, Chemistry, daily commodity, pet food and plastic hardware industry, etc.
MAIN STRUCTURE
LEADING FEATURES Made of rigid heavy-duty painted steel frame as standard
Unique reasonable structure design
High quality bearings and wheels ensure longtime reliable running
Adopt own-developed digital intelligent control system
Automatic tension adjustable of sealing band ensure reliable sealing
Tool free quick adjust sealing head, belt moving section and tilt angle 0-20°
User-friendly control LCD screen with quick keypad setup
Included one heating group and one cooling fan
Adjustable sealing speed for production arrangement
Intelligent electrical sealing module ensure precision temperature
Total sealing bag numbers can be set with production records display
Universal castor for flexible moving usage
Free adjust pouch loading guide plate for sealing position
OPTIONS AVAILABLE Stainless steel frame
Vertical sealing structure design
Gas flush or Vacuum function or both
Adjust distance between sealing head and belt by motor with stopper device
Various printer as option(Ribbon/Inkjet/Laser)
SPECIFICATIONS

Power Supply	220V/50-60HZ, 1P	Sealing Band Size	1450*20*0.22mm
Power	1500W	Moving Belt Size	2440*290*2mm
Motor	24V/120W/18K	Max. Bag Size	450*400mm 18c
Sealing speed	0-25m/min	Belt Height	700-900mm
Sealing Width	15mm	Heating Elements	350W/150*10mm*4
Heating Degree	0-300ºC	Max. Loading Weight	10-50kg
Machine Size	1300*550*1060mm	Gross Weight	90kg
Option	110V voltage, wider sealing, more blank, date printer, etc

Note: 1. The exact model will be subject to pouch size, pouch type and pouch film material and portion weight, etc
2. The above machine specifications are standard, but special requirements can be customized.
3. If there are any updates to the product, it is subject to actual machine conditions without prior notice.

LINWAY WORKSHOP
MORE ABOUT LINWAY Found in 2006, Linway have been dedicated in R&D and supplying various heavy duty horizontal vertical continuous band sealing machines with the advantage of modern production facility, years experience staff and know-how team; Intelligent main board control sealing temperauture and easy opertation, Flexiable customizability with various options available, sealing funtion with inkjet printer, laser printer, vacuum sealing, ultrosonic sealing, doypack packing machine, sleeve packing machine, auto sealing with shrinking packing machine, automatic carton sealer and so on, which is popular with various food or non-food industry worldwide.
- Combo horizontal and vertical band sealer machine
- Heavy duty 320L 10-50kg vertical band sealer machine
- Continous band sealer with vacuum nitrogen gas flushing function

Look forward the opportunity to serve you!!!

---
