Concrete Mixer Taiwan for Infrastructure Construction Since 1991

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:
We are leading factory with almost 30 years in machinery export business, engoy an excellent reputation in circle of concrete mixer. Also, we participate in the Canton Fair every year. We sincerely invite customers who wish to have a long-term cooperation to visit our factory and have business discussion.
To give you a general idea of our products, we are enclosing our catalog for your reference to your email box after your permission. For more information about our company and products, you may also visit our web site: tobemac.en.made-in-china.com
Note: Best price according to quantity and engine option. Pls contact us for more information.

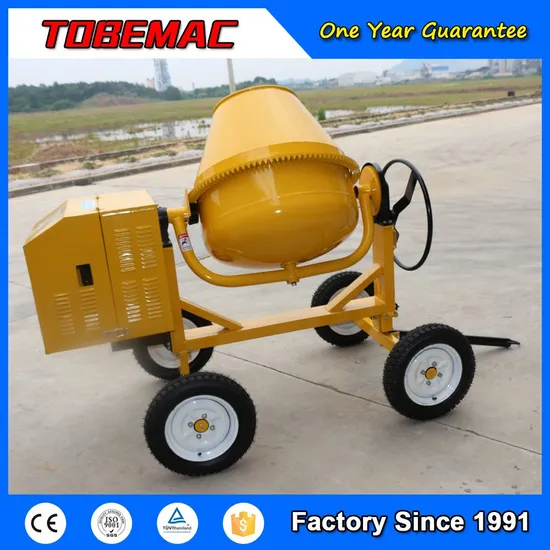

Model	TOBEMAC Brand CM350-4A Diesel Tilting Drum Concrete Mixer with High Quality
Drum Capacity	350 L
Mixing Capacity	280 L
Productivity	4-5 m3/h
Bags of Cement per Batch	1 Bags Cement (50kg/bag)
Drum Rotation Speed	25-30 rpm
Drum Size	Φ800×900 mm
Power Option	Water-cooled Diesel Engine R180 (8HP)
Drum Thickness	3mm/4mm (Upper/Bottom)
Tyre Size and Number	4×(4.00-12)
Overall Size (L×W×H)	1960×1100×1700 mm
Packing Size (L×W×H)	1860×860×1100mm
Container Loading Plan	14 Sets With Assembled Per 20GP, 28 Sets With Assembled Per 40 HQ 24 Sets in CKD condition per 20GP, 60 Sets in CKD condition Per 40 HQ

3.Product Application
The CM350-4A Concrete Mixer with With Tilting Drum and Diesel Engine is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The CM350-4A Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Big Steering Wheel for easy operation
2) Robust Chassis with 16 mm width Steel Bar
3) Many Small Holes on the Engine Cover for good ventilation
4) Spraying Plastics Treatment
5.Production Flow
6.Packaging&Delivery

	Size	1860 (L) * 860 (W) * 1100(D) mm
	Weight	310 kg
	Packaging Details	The normal package is by big PLASTIC BAG . 14 Sets With Assembled Per 20GP, 28 Sets With Assembled Per 40 HQ 24 Sets in CKD condition per 20GP, 60 Sets in CKD condition Per 40 HQ

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
8.Contact with us!
Mr. Leo
----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA

---
