Drip Irrigation Tape Pipe Extrusion Making Machine

Product Description

Product Description

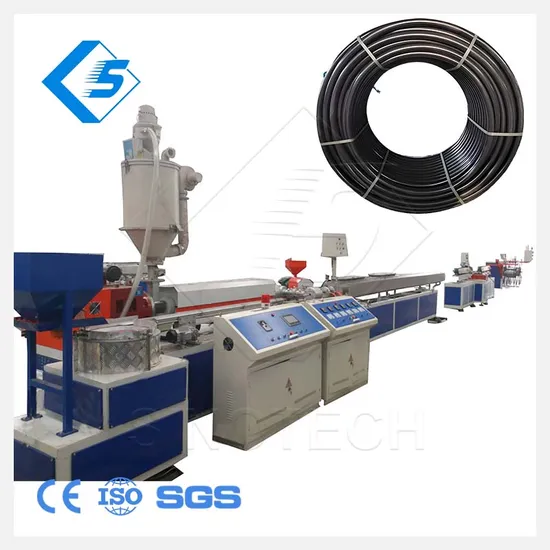

Drip Irrigation Tape Pipe Extrusion Making Machine
Drip irrigation pipe production line, drip irrigation pipe extrusion line, drip irrigation pipe making machine, drip irrigation pipe extrusion machine and machinery. Drip irrigation pipe extruder, drip irrigation belt production line. Drip irrigation tape production line.
Agricultural Water Saving Drip Irrigation Pipe Extrusion line
The drip irrigation pipe production line is a device for producing drip irrigation pipes, which is an ideal piece of water-saving irrigation equipment. Specially used to produce water-saving irrigation belts used in agriculture to save energy and increase yield, which is widely used for irrigation of greenhouses, fruit forests, and field economic crops. the machine's finished products play an important role in reducing water loss during the process of transporting water from the water source to fields. And it adopts inner-mounted drip irrigation tubes, which has a more outstanding cost performance and adaptability.
Working Process of Plastic Drip Irrigation Pipe Production Line: Dropper recognition, transportation and insert machine →Single screw extruder with Hopper dryer →(Co-extruder)→ Mould → Vacuum calibration cooling tank→ Haul -off machine →Automatic Drilling unit→ Coiler/Winder
Features of Drip Irrigation Tube Extrusion Line:
-Production is stable and reliable. -Transmitter transmission. -The punch position is accurate. -This kind of chip can be easily disassembled. -Adopt PLC control, easy to operate. -According to the production requirements, different specifications can be produced after changing the mould, conveying and stamping parts. -Electrical components adopt domestic famous brands. -The servo system USES imported components. -Matched with instrument alarm device. -It can also be used to make regular drip lines.
Application of Drip Irrigation Pipe is a special irrigation system widely used in the irrigation of various crops, fruit trees and vegetables. Its principle is to pass water through the microporous flow control device and drip it quantitatively into the root zone of the plant, so that the plant can get just the right amount of water and nutrients.

Product Parameters

No.	Name	Qty
1	Dripper selection, delivering and inserting system	1 set
2	Automatic loader &Hopper drier	1 set
3	SJ65/33 Single screw extruder	1 set
4	SJ25/25 Co-extruder	1 set
5	Mould	1 set
6	Vacuum calibration tank	1 set
7	Cooling water tank	1 set
8	Haul-off machine	1 set
9	Punching system	1 set
10	Coiler	1 set
11	Electric control cabinet	1 set

Item	Unit
SJ65/33 Single screw extruder
Screw diameter	mm	65
L/D		33:1
Cooling fan power	w	250
Motor	kw	30
Extrusion capacity	kg/h	80-160(The extrusion capacity varies with the material and the operation level.)
Mould
Specification	mm	Φ20
Heating power	kw	3.5
Heating temperature control		1 zone
Water tank length	m	4 (standard configuration, length can be adjusted according to actual conditions)
Center height	m	1
Vacuum pump	kw	0.75
Cooling tank
Tank length	m	6 (standard configuration, length can be adjusted according to actual conditions)
Central height	m	1
Haul-off machine
Haul-off method		Belt
Haul-off speed	m/min	≤60
Motor powder	kw	2.2
Rotation speed	R/min	50HZ 1450

Final Product
The main advantages of drip irrigation include
1.Water saving: Since the drip irrigation pipe is a quantitative drip, it can reduce the waste of water and save waterresources.2.Anti-leakage: The drip irrigation pipe adopts the structure of flexible pipe and microporous flow control device, whichreduces the possibility of water leakage and prevents water loss.3.Time-saving and labor-saving: Once installed, the drip irrigation system can operate automatically, without manualmaintenance, and can automatically replenish water when there is a shortage of water.4.Uniform irrigation: The drip irrigation pipe can drip water accurately, avoiding the uneven water flow of the nozzle.5.Energy saving and emission reduction: The drip irrigation system uses low-pressure irrigation, which can save electricity and reduce waste water and carbon dioxide emissions during the irrigation process.
Company Profile
Certifications
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
