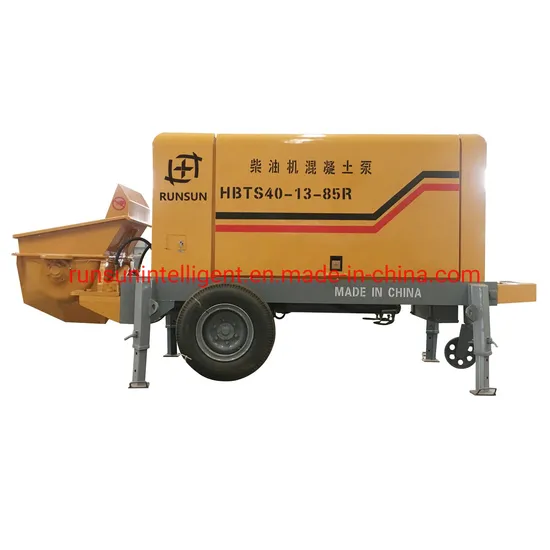

Hbt40 Stationary Concrete Pump Driven by Diesel Engine

Product Description

Technical Parameters

Model	HBT40	HBT40R
Max Theoretical Concrete Output (Low/High pressure) (m³/h)	28/40	28/40
Max Concrete Pumping Pressure (Low/High pressure) (Mpa)	7/13	7/13
Concrete Slump	120-230	120-230
Aggregate Size (mm)	pebble≤40 gravel≤30
Power (KW)	Electric motor 55	Diesel Engine 85
Speed (r/min)	1480	2300
Conveying Cylinder Diameter (mm)	Ø 100/1000	Ø 100/1200
Concrete Cylinder Diameter (mm)	Ø 180/1200	Ø 180/1200
Hydraulic Oil Tank Capacity (L)	250	250
Hopper Capacity (m³)	0.8	0.8
Fuel Tank Capacity (L)		150
Filling Height (mm)	1400	1400
Maximum Conveying Distance (Horizontal Distance/Vertical Height) (m)	200/80	300/100
Pipe Cleaning Mode	High Pressure Water Washing
Overall Dimension (mm)	5000×2000×2200	5500×1800×2100
Total Weight (kg)	4300	4200

Main Components' Brand or Manufacturer:
HBT40 CONCRETE PUMP (Electric Motor)

Item	Brand or Manufacturer	Place of Origin
Electric Motor	Jiangsu lideer	China
Main Oil Pump	KAWASAKI140	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic hose	Manuli	Italy
Main Valve	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

HBT40R CONCRETE PUMP (Diesel Engine)

Item	Brand or Manufacturer	Place of Origin
Diesel Engine	Yuchai	China
Main Oil Pump	KAWASAKI140	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic hose	Manuli	Italy
Main Valve	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

HBT40 Stationary Concrete Pump Driven by Diesel Engine
Runsun Intelligent Technology Co.,ltd is a specialized manufacturer of various mortar and concrete machine. such as mortar mixer, concrete mixer, mortar grout pump, mortar spraying machine, concrete pump, fine stone shotcrete pump, concrete mixer pump and so on. We have more than 30 years' experience in designing and manufacturing mortar and concrete machine. Our machine exported more than 300 sets different types of the concrete pump (Driven by Diesel Engine and Electric Motor, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise building, high-speed railway, bridges, tunnels and so on.
Technical Advantages
1) High quality concrete pump trailer equipped with high efficiency concrete pumping system.
2) Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
3)Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
4) Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
5) Advanced hydraulic system.
Working Applications Fields:
