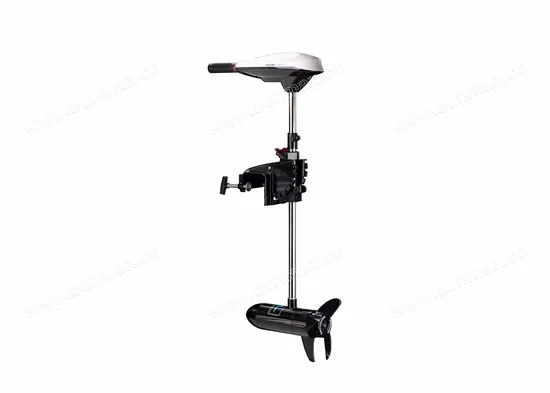

Haibo ET Series Hand Control Electric Trolling Motor ET54L

Product Description

Haibo ET Series Hand Control Electric Trolling Motor ET54L
Product Description
• Various ranges .•Multi-speed mode .•Quiet and stable .•Available with telescopic handle .•High effcient and long live motor .•Portable, easy use and installation. •LED dynamic voltage display, overvoltage and under-voltage alert .The Haibo ET54L boat engine is a great choice for inflatable or hull boats used in freshwater bodies of water. The electric motor in the boat with a stainless steel rack, as well as with a metal engine body and a trantsev mount is very reliable. A telescopic rumpel provides the convenience of control.
The Haibo ET54L is used for water and fishing. Five front speeds allow you to choose the best speed for trolling or maneuvering. Thanks to the steady operation even at the lowest speeds, the engine provides smooth wiring without jerks and speed changes.
Haibo ET54L is a very economical electric motor. It runs from a traction battery and 2-3 kW spent on its charge, you will have enough for one and a half to two hours of movement with maximum speed. When driving at the first or second speed, the electric motor from the battery will work several times more.

Item	Thrust(lbs)	Voltage(v)	Current(A)	Shaft Material	Shaft Length(cm)
ET34	34	12	32	AL	78.7
ET44	44	12	42	S.S	78.7
ET54	54	12	50	S.S	78.7

Product Features

	High efficiency motor unit *National electric motor patent manufacturing technology *High performance anti winding propeller, easy to deal with water obstacles, made of high-strength plastic		Telescopic handle *Speed regulation Of forward 5 and backward 3 relays
	Multi speed adjustment *Speed regulation of forward 5 and backward 3 relays *LED dynamic voltage display, overvoltage and under-voltage alert		Finger pressure suspension system *Depth adjustment device *Finger pressure suspension
	Breaker protector CB50S *When the propeller is locked or overloaded, the power supply of the product will be cut off to protect the propeller from damage. Just reset the propeller gear and eliminate relevant faults, then press the reset button of the product to resume use		Armature motor tracking code *Each motor corresponds to a tracking code

Product Parameters

Model	ET54L
Power (W)	648
Thrust (lbs)	54
Thrust (kg)	24.5
Rated Voltage (V)	12
Max. Current (A)	54
Type of Electric Motor	Brush
Propeller Max. Speed at Full Power (rpm)	1700
Management	Handle
Type of Handle	Telescopic
Shifting	5 forwards and 2 backwards
How Information is displayed	No
Information Displayed	No
GPS	No
Number of Propeller Blades	3
Noise Level (dB)	52
Max. Boat Weight (kg)	500
Max. Length of Boat (m)	6.4
Use Environment	Fresh Water
Color	White
Total Engine Height (cm)	105
Shaft Length (cm)	78.7
Weight (kg)	11
Recommended Battery Capacity (AH)	120
Package Size (cm)	114 x56 x18
Warranty Period (Months)	12

---
