Product Description
Product Description
Product Video
Product Description
Product Application

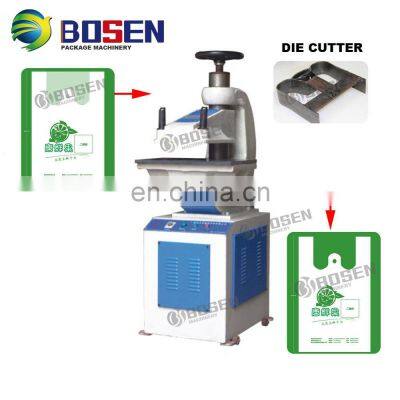

We have Manual or Hydraulic punching machine
For T shirt bag pucnhing
non woven bag pucnhing
D cutting
Carry bag punching
Leather punching
Plastic film punching
Main Features
1) Simple & easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure with push Press-button fast speed.
4) Running in a high automatization and intellectualization,no pollution
5) Strong & heavy body with good metail and good produce technics.
6) Longer life, average could have 8-10 years working.
Specification
Type XGB-100, XGB-180,X626, X625
Max.Blanking Pressure: 8 T, 10T, 12T, 16T, 20T..
Max.Stroke 45mm, ,50mm
Dia.of Oilpump 100mm, 120mm
Working Pressure of Oil Pump 15.69Mpa ,18.14Mpa
Motor Power 1.1kw, 1.5kw
Area of Working Table 650×400mm, 800×400mm
Overall Dimension(L×W×H) 700×760×1260mm 900×800×1480mm
Weight: 500kg, 600kg, 800kg....
Detailed Images
Punching Model Machine Parts
You could order it
Let us know size
Good price
Strong hard steel
Table Working Area Main Features
You could order
We have many size
600mmx380mm
650mmx380mm
640mmx400mm
760mmx400mm
1000x500mm
Electric Machine Parts
Machine power off pretect system
Switch atcion and alarm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
|
Size
| accoding to your order size
|
Weight
| see specification
|
Packaging Details
| The normal package is wooden box(Size: L*W*H) without your own sperated container or pack it according to customers special request.
|
Packaging
|
Size
| as order
|
Weight
| see specification
|
Packaging Details
| If you order container, it could use pe film for packing or pack it according to customers special request. If no container, suggesting wooden case package.
|
Certifications
