| US$2,500.00-3,900.00 | 3 Sets (MOQ) |
| SPECIFICATION: | ||

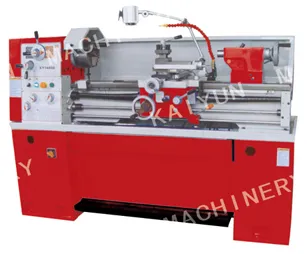

| MODEL | KY1340B | KY1440B |
| MAIN DATA: | ||
| Swing Over Bed: | 330mm(13") | 360mm(14") |
| Swing Over Cross Slide: | 195mm(7-5/8") | 220mm(8-5/8") |
| Swing in Gap: | 475mm(19") | 506mm(20") |
| Distance Between Centers: | 1000mm(40") | |
| Width of Bed: | 206mm(8-1/8") | |
| SPINDLE | ||
| Spindle Hole: | 38mm(1-1/2") | |
| Spindle Nose | D1-4 | |
| Taper of Spindle Bore | MT5 | |
| Step of Spindle Speeds | 8(single speed motor)/ | |
| 16(two speeds motor) | ||
| Range of Spindle Speeds(RPM) | 45-1800 | 90-1800 |
| FEED AND THREAD CUTTING: | ||
| max travel of compound Slide | 89mm(3-1/2") | |
| max travel of Cross Slide | 152mm(6") | |
| max travel of Carriage | 945mm(37-1/4") | |
| Metric Thread(22 kinds) | 0.40-7.0mm | |
| Inch Thread(44kinds) | 4-112 T.P.I. | |
| Max.Tool Size: | 16x16mm(5/8"x5/8") | |
| Longitudinal feeds(inch) . | 0.0012"-0.0294"/Rev | |
| Longitudinal feeds(metric) | 0.043-0.653mm/Rev. | |
| Cross feeds(inch) . | 0.0003"-0.100"/Rev | |
| Cross fedds(metric) | 0.015-0.220mm/Rev. | |
| TAILSTOCK | ||
| Travel of Tailstock qutll | 120MM(4-3/4") | |
| Diameter of Tailstock qutll | 45mm(1-25/32") | |
| Taper of Tailstock qutll | M.T.3 | |
| MOTOR | ||
| Power of Main Motor | 3HP/3PH 50HZ(60HZ) | |
| DIMENSION AND WEIGHT | ||
| Overall Dimension(LXWXH) | 1822X787X1205mm | 1822X787X1235mm |
71-3/4"X31"X47-1/2" | 71-3/4"X31"X48-5/8" | |
| N.W | 700kgs | 750kgs |
