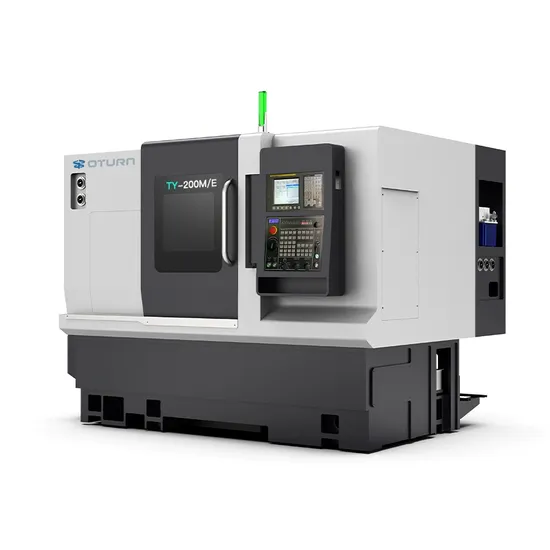

Advanced High-Stability 30° Inclined Bed CNC Turning Center Ety200m with CE/ISO

Product Description

Product Description
ETY200M adopts box-shaped structure bed, high-strength HT300 cast iron, compact structure, high strength, appropriate hardness, low friction coefficient, and self-lubrication. The integral box structure of the base bed greatly enhances the overall rigidity and stability of the machine, and has a vibration-absorbing function, which reduces tool loss and improves workpiece quality.
The 30° inclined layout and the integrated structure of the bed base greatly improve the bending and torsional rigidity of the machine during work. The high rigidity and high stability of the bed base provide a strong guarantee for the high precision.
2. Direct drive electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
(1) Effectively eliminate the vibration of the spindle, and the deflection accuracy of the nose end is within 0.002MM. Improve the surface finish of the workpiece,
(2) The rear-mounted rotor is adopted, which makes installation and maintenance faster,
(3) The spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle.
The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the whole machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
3.High-rigidity overall design servo turret, with high-precision clutch, to ensure its positioning accuracy and repeat positioning accuracy. It is equipped with a servo motor to drive the cutter head to rotate, to select the tool in two directions or at any distance, use the hydraulic principle to loosen and clamp the clutch, and cooperate with the proximity switch to feedback the clutch action signal to quickly and accurately achieve the tool change action.
Programmable hydraulic tailstock The integral tailstock with high rigidity structure can eliminate vibration and provide excellent stability. Programmable or manual button control, the expansion and contraction of the sleeve is realized by means of hydraulic cylinder, which is convenient, fast and reliable.
The feed system is directly driven by the servo motor, which has good rigidity, precision and dynamic response characteristics. The machine is equipped with roller linear guide rails, and the maximum rapid traverse speed can reach: 20m/min.
The perfect hydraulic and lubrication system adopts high-quality hydraulic pumps and hydraulic valves, which greatly reduces the failure rate. The design of the hydraulic and lubrication system is simple and reliable. The machine adopts centralized quantitative automatic lubrication.
7. Adopt Taiwan rotary chuck oil cylinder, equipped with automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming, and various special fixtures can be designed and installed according to the special requirements of users.

Product Parameters

Item	Unit	TY200M/E
Max. swing diameter over bed	mm	Ф610
Max. processing diameter	mm	Ф450
Max. processing diameter over tool holder	mm	Ф230
Max. processing length	mm	370
Distance between centers	mm	550
Spindle type	/	A2-6
Spindle bore diameter		Ф52
Max. bar diameter	mm	Ф66
Max. spindle speed	rpm	4300
Direct drive spindle motor power	kw	18/22
Direct drive spindle motor torque	Nm	91-227
Hydraulic Cylinder/ Chuck	/	8"
X/Z axis motor power	kw	2.5
X/Z axis travel	mm	250/460
X/Z axis rapid speed	mm/min	24
Slide rail type	/	Roller35
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret type	pcs	BMT55-12T
Power turret motor	Kw/Nm	5.5/35
Max. power tool holder speed	rpm	6000
External diameter tool holder specification	mm	25x25
Internal diameter tool holder specification	mm	Ф40
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	mm	Programmable
Max. Tailstock travel	mm	360
Sleeve diameter		Ф100
Sleeve travel	mm	100
Sleeve taper	/	MT#5
Machine size	mm	2500*2100*2000
Machine weight	kg	4200
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment
Q6:What's the OMQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
