Fish Farms Use Corn Wheat and Soy Ingredients Floating and Sinking Fish Food Processing Line Extruder and Dryer

US$5,200.00-42,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TSE65/70/78/85/90/95/120/140-P
Processing Object
Puffed Fish Feed
Processing Technics
Extrusion
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Service Type
Turnkey
Extruder Type
Twin-Screw Extruder
Core Production Technique
Co-Rotation Twin-Screw Extrusion
Screws Material
38CrMoAl
Main Body Material
Stainless Steel
Dryer Heating Type
Electrical, Gas-Fired, Oil-Fired, Steam
Main Food Materials
Corn Meal, Rice Powder, Wheat Flour
Speed Control Type
Controlled by Inverters
Main Production Factors
Temperature, Pressure, Feeding Speed etc.
Motors Type
3-Phase Asynchronous Motors
Transport Package
Wooden Case
Specification
Voltage: basing on user′s workshop voltage
Trademark
Shengrun
Origin
China
HS Code
8438800000
Production Capacity
20 Sets Per Month

Packaging & Delivery

Package Size
315.00cm * 120.00cm * 250.00cm
Package Gross Weight
1500.000kg

Product Description

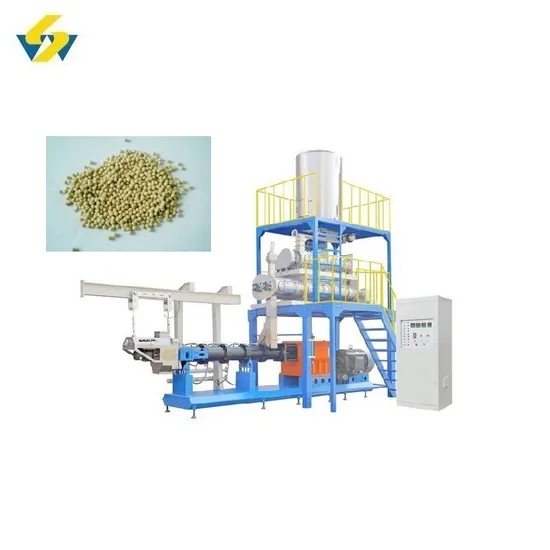

Fish farms use corn wheat and soy ingredients floating and sinking fish food processing line extruder and dryer
1. Puffed fish feed processing line introduction
Puffed fish feed processing line is mainly made up with raw materials treatment system, extrusion system, drying system, flavoring system and controlling system. It has high stability and automatic performance, which offers the possibility to control the expansion of the extrudate through various means to control the texture of the final product.
Puffed fish feed processing line's core technology is co-rotating twin-screw extrusion. Twin-screw extruder is the core of this line, enabling the continuous production of puffed fish feed.
2. Puffed fish feed processing line description:
2.1 Flow chart: raw materials→ extrusion→ drying→ flavoring→ cooling→ packing
2.2 Processing line features
2.2.1 High work efficiency, automation degree, materials usage, application range.
2.2.2 Low land occupation, power consumption, labor cost, waste rate.
2.2.3 Various configurations and capacity choices.
2.2.4 This processing line can make both floating and sinking fish feed. It can make pet food as well.
2.2.5 Production factors can be quantified and controlled.
2.2.6 World-class food grade fittings.
2.2.7 All machines and fittings can be custom-made. ODM/OEM is available.
2.2.8 Professional pre-sale, sale and after-sale service.
2.3 Processing line parameters
Type Model Capacity (kg/h) Installed Power (kw) Actual Power (kw)
Dry
Type
TSE65-P 100-150 74 52
TSE70-P 200-250 105 75
TSE85-P 300-500 205 150
Wet
Type
TSE95-P 1000-1500 165 106
TSE120-P 2000-2500 226 140
TSE140-P 3000-5000 360 250

2.4 Puffed fish feed processing line machines and fittings graphic introduction
2.4.1 Series extruders
2.4.2 Series dryers
2.4.3 Fittings
3. Puffed fish feed samples introduction
In order to meet modern fish farms development, most of modern fish feed is made by twin-screw (or single screw) extrusion production line, which is called puffed, extruded or puffed fish feed. Adopting cereals, vegetable proteins, vitamins, minerals, fish meal and fish oil as raw materials, and adopting dry-type or wet-type extrusion as manufacturing technique, puffed fish feed is made for both carnivorous and graminivorous fishes. Compared with traditional fish feed, puffed fish feed has the advantages: (1) easier feeding management (2) lower wastage rate (3) lower water contamination (4) higher feed nutritional ingredient use ratio (5) longer storage time. Puffed fish feed improves digestibility and refined the balance of nutrients to match the needs of the different species of fish more precisely at different periods of development. At the same time, puffed fish feed improves the sustainability of the ingredients used. Based on the advantages, puffed fish feed will replace traditional fish feed in the future.
4. Packing and delivery
4.1 Packed by plastic protective film or wooden case, which is seaworthy.
4.2 We can supply fumigation package and certificate
5. Service
5.1 1 year warranty period.
5.2 Supply free fittings and general tool.
5.3 Engineers available to service machinery overseas.
5.4 Supply formula of raw materials.
5.5 Workshop design suggestion.
6. Company introduction
Jinan Sunward Machinery Co., Ltd. is a puffed and extruded food machinery manufacturer in China.
We can design and manufacturer the machines to make puffed and extruded food for human and animals.
So far, we have 3 factories, which covers 10000 square meters. We have ISO9001:2015 & CE certificate, and pass SGS, BV & TüV inspections. We have exported our machines to more than 100 countries in the world and keep development.
