Product Description
Product Description
Hot Paddle Wheel Aerator Pond Aerator
Skype: woodlily8
Whatsapp: 0086-15736766285
Brief Introduction :
1, High quality motor expertise design for aquaculture industry
2, Low friction gear reducer with low resistance to decrease energy losses
3, Sturdy stainless steel Frame ensure without any deformation and high durability
4, High performance impeller, replaceable paddle,low maintain cost
5, HDPE float resist impact, acid-alkalinity and sun exposure, one piece blow molded
Parameter :
Model
| Power
| Aerobic capacity
| Power Efficiency
| Rotating Speed
| Impeller No.
| Overall Size
| Weight
|
WDYL
-0.75
| 0.75 kw
| ≥1.1(kg/h )
| ≥1.25kg/kw.h
| 1400 r/min
| 2 pcs
| 1500*1580*850 mm
| 80kg
|
WDYL
-1.5
| 1.5 kw
| ≥1.9(kg/h )
| ≥1.25kg/kw.h
| 1400 r/min
| 4 pcs
| 2000*1580*850mm
| 100kg
|
WDYL
-2.2
| 2.2kw
| ≥2.8 (kg/h )
| ≥1.25kg/kw.h
| 1400r/min
| 6 pcs
| 2500*1580*850 mm
| 120kg
|

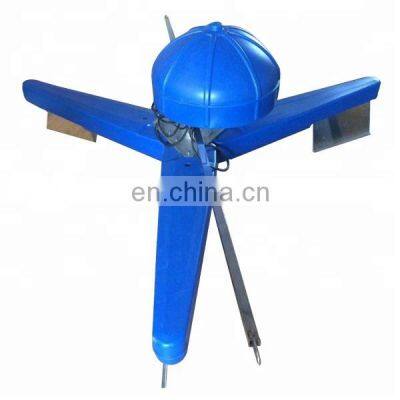

Floating Ball Aerator
Brief Introduction :
1.There is a protector installed in the motor , and the switch would turn off automatically when the voltage is too low or three phase main is imbalance to protect the motor from being badly damaged .
2. Gear is made of chromium-manganese-titanium alloy steel and immersion of carbon and nitrogen on the surface which can prolong the life span greatly .
3.The advanced technology ,the non -welding assembled impeller can run stably without eccentric and easy carried .
4.According to various environment and consumers’ requirement ,we have developed engineering plastic impeller and stainless steel impeller ,which can ensure the long time use in the seawater or the high corrosive industrial wastewater without frequent replacing the impellers or painting .
Parameter:
Model
| Power
| Power efficiency
| Oxygen Transfer Rate
|
WDY-1.5
| 1.5kw
| >1.4 kg(O2)/kw .h
| >2.25 kg(O2)/h
|
WDY-3.0
| 3.0 kw
| >1.4 kg(O2)/kw.h
| >4.5 kg(O2)/h
|
