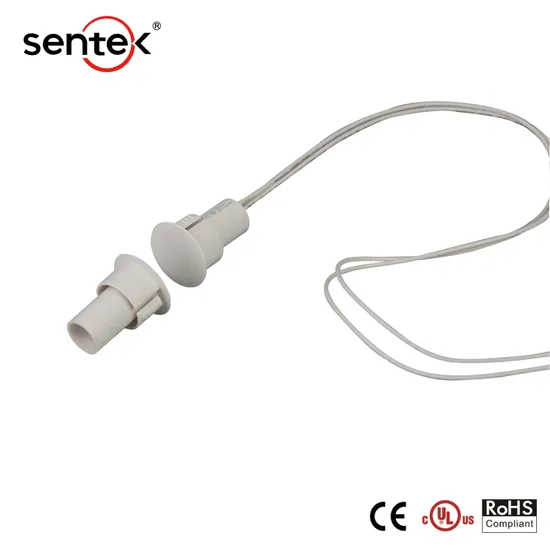

Magnetic Door Security Monitor Switches

Product Description

Specification:

Part Number	Loop Type	Reed Form	Closed Gap (in steel door) [Inch(mm)]	Depature Gap (in steel door) [Inch(mm)]	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BR-1021	Closed	N/O	3/4(19)	0.95(24)	0.150	7.5	100	0.4
BR-1021MM	Closed	N/O	1(23) (in Wood)	1 (25)	0.150	7.5	100	0.4
BR-1021WG	Closed	N/O	1(25)	/	0.150	7.5	100	0.4
BR-1021A	Open	N/C	5/8(15)	/	0.150	3	30	0.2
BR-1021C	Closed & Open	SPDT	5/8(15)	/	0.150	3	30	0.2
BR-1021D	DPDT	2SPDT	1/2(12)	/	0.150	3	30	0.2

Magnetic Door Security Monitor Switches
Dimension (mm):
Features:
1) Diameter: 3/4", press to fit
2) Suitable for steel door installation
3) Self-locking
4) Longer leads available
5) Standard 18" 22AWG leads
6) Switch or magnet available separately
7) 2-conductor jacket cable upon request
8) Colors: white, brown, grey
