The Project Is Idle, Xg Concrete Mixer Truck Is Being Transferred

Product Description

Product Description
Basic vehicle parameters: It is very helpful for the transportation and pouring of concrete on construction sites: Parameter Category Details

Mixing Volume (m³)	12
Gross Vehicle Weight (kg)	25,000
Chassis Model	SX5258GJBDR384TL
Chassis Brand	Shaanxi Automobile
Drive Form	6×4
Wheelbase (mm)	3,975 + 1,400
Tire Model	12.00 - R20
Overall Dimensions (Length × Width × Height) (mm)	9,950 × 2,500 × 3,980

Key advantages:
1. High-Tech Transmission and Axles:
Equipped with high-tech, reliable, and high-quality Fast transmission and high-performance axles from brands like Steyr and Mercedes-Benz, offering superior adaptability.
2. High-Efficiency Mixing:
The truck is fitted with a professional mixing device that can efficiently mix concrete materials, ensuring the uniformity and quality of the concrete.
3. Large Capacity Mixing Drum:
With a large capacity, the truck can mix a significant amount of concrete materials at once, improving work efficiency.
4. Comfortable Driving Experience:
The truck features a spacious and comfortable cab with user-friendly design, providing a better driving experience for the operator.
5. High Reliability and Durability:
As a well-known construction machinery manufacturer, XuGong uses high-quality components and materials, ensuring high reliability and durability to adapt to harsh working environments and high-intensity tasks.
6. Superior Safety Performance:
The truck is equipped with advanced safety systems such as auxiliary braking systems and anti-rollover systems to ensure driving safety.
7. Easy Maintenance and Repair:
The design of the truck considers ease of maintenance and repair, facilitating routine maintenance and troubleshooting, reducing maintenance costs and downtime.
8. Advanced Technology and Manufacturing:
The truck's upper structure is optimized for aesthetic appeal, structural rationality, and reliability. Key components use imported parts, and the hydraulic pump, hydraulic motor, and reducer are advanced and reliable, extending the service life of the truck.
9. Large Capacity Mixing Drum:
Ensures sufficient mixing space, with symmetrical spiral mixing blades and additional auxiliary blades in key areas to maintain the uniformity of concrete during transportation and adapt to long-distance transport.
10. High Fill Rate and Low Residual Rate:
The optimized design of the main spiral line's pitch, lead, lift angle, and blade shape improves the fill rate and ensures smooth and unobstructed material flow, reducing the residual rate.
11. Comfortable and Flexible Control:
The truck uses a remote electronic intelligent controller to control the speed of the mixing drum, allowing for bidirectional speed control within a range of 0-16 rpm, providing flexible and stable control over material loading and unloading.
12. Well-Equipped Manufacturing:
The truck's drum and frame are welded on large-scale jigs, keeping the outer dimensions and positional errors strictly within the design requirements. The drum is automatically submerged arc welded, enhancing weld strength and reducing welding defects. High-quality painting and baking processes improve paint adhesion and protection, resulting in an even, glossy, and textured finish.
13. Considerate Service and Worry-Free After-sales:
With a well-established service network and 400 professional service stations, service coverage is extensive across the country, with over 90% of areas within a 100-kilometer service radius.
14. Comprehensive Equipment and System Solutions:
XuGong's concrete machinery product line, including concrete mixing stations, concrete pump trucks, concrete conveying pumps and vehicle-mounted pumps, and concrete mixer trucks, forms a complete set of concrete machinery equipment, providing customers with complete product solutions.

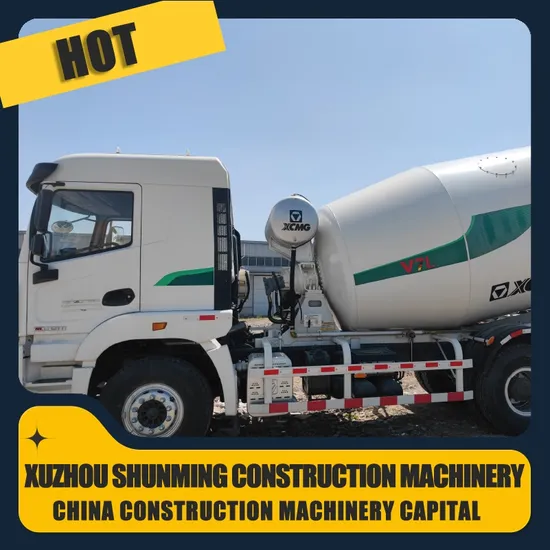

Detailed Photos
Product photos are taken from the latest condition of each used car. Interested friends can also communicate further!


Product Parameters
Parameter Category Details

Mixing Volume (m³)	12
Gross Vehicle Weight (kg)	25,000
Chassis Model	SX5258GJBDR384TL
Chassis Brand	Shaanxi Automobile
Drive Form	6×4
Wheelbase (mm)	3,975 + 1,400
Tire Model	12.00 - R20
Overall Dimensions (Length × Width × Height) (mm)	9,950 × 2,500 × 3,980
Engine Model	WP10NG336E50
Rated Power (kW/rpm)	247
Displacement (L)	9.726
Emission Standard	China V
Mixing Drum Parameters
Geometric Volume (m³)	19.5
Filling Rate (%)	12
Drum Tilt Angle (°)	12
Feeding Speed (m³/min)	≥3
Discharging Speed (m³/min)	≥2
Residual Discharge Rate (%)	<1
Slump Range (mm)	5~21
Water Capacity (m³)	450
Other Parameters
Total Weight	Approximately 30 tons
Engine Power	Approximately 340 horsepower
Front Axle Load	Approximately 7 tons
Rear Axle Load	Approximately 23 tons
Emission Standard	Meets China IV emission standard
Wheelbase	Approximately 3,800 mm
Front Overhang/Rear Overhang	Approximately 1,500 mm/2,300 mm
Mixing Tank Material	Made of Q345B steel plate
Mixing Tank Speed	Approximately 0~16 rpm
Mixing Tank Rotation Direction	Clockwise or counterclockwise (adjustable)
