Factory Outlet Machine Gasket Extrude Silicone Rubber Cable Extruder

Product Description

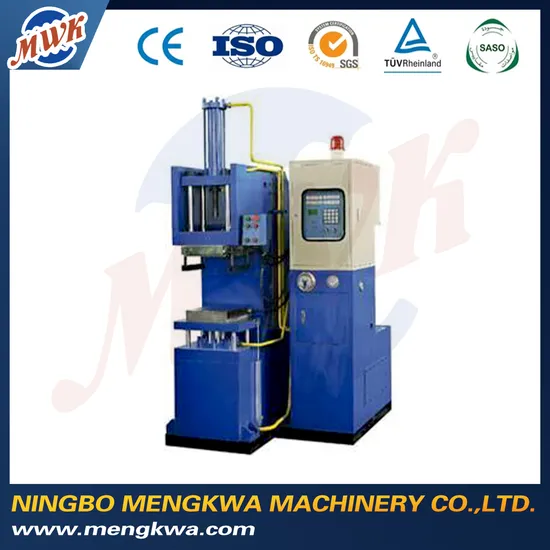

Rubber Vacuum Vulcanizing Press Extruder
Specifications:
Vacuum vulcanizing press for rubber is an advanced hot-pressing molding equipment for rubber products, with a national patent
Flow of Machine Motions:
Inital state-put the material into the mould,reposit the ejector cylinder-load the mould-close the mould quickly-vacuum cover goes doen-suck out the air, clamp the mould slowly, increase pressure-exhaust-vacuum cover goes up, vulcanize- open the mould quickly-pushing out the mould-ejector cylinder works,and separate mould and product-take out the product.

Items	Unit	Parameter
Clamping force	kN	1000
Max.System pressure	MPa	23
Clamping Stroke	mm	300
Rapid Clamping Speed	mm/s	50
Heating Plate Size	mm	450 x450
Heating Plate Spacing	mm	300- 400
Max. Temperature		250
Vacuum Cover Stroke	mm	200
Ejector Stroke	mm	250
Ejector Force	kN	50
Motor Power	kW	5.5+5.5
Heater Power	kW	9+9
External Dimension (LWH)	mm	3500x2270x(2300-2650)
Weight	kg	6800
Oil Tank Capacity	L	350
Max Mould Thickness	mm	190

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
