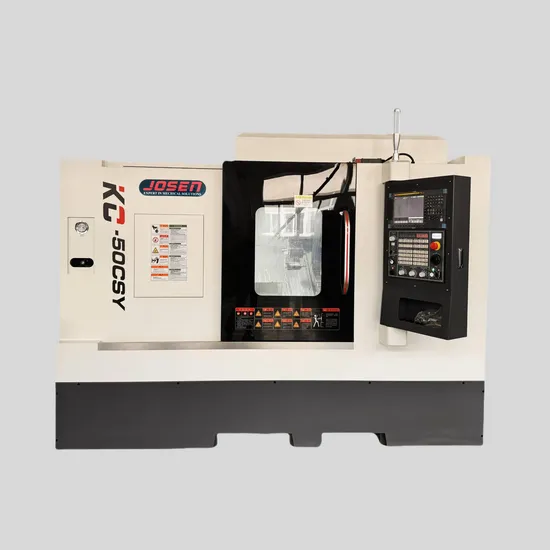

Cabinet-Ready Factory-Direct CNC Lathe Multi-Process Double Spindle Turning and Milling Machine

Product Description

Product Description

1.This model is suitable for communication electronics, automobile and locomotive parts production, and automated parts processing.

2.Combined with FEM analysis, the main components of the base, column and saddle all adopt unique high rigidity structure, which makes the internal force structure of the whole machine more optimized and ensures the rigidity and thermal variation stability of the whole machine.

3.Three axes linear precision rolling guide design, fast acceleration and deceleration response, effectively improve the machining efficiency and machining accuracy of the machine, even under heavy load is also excellent.

4.The front end of the spindle is equipped with a circular water jet to allow effective cooling of the cutting tool, while the internal air curtain with negative pressure extends the service life and ensures reliable use of the spindle for long time and high-speed operation.

5.The stable base and column with lightweight motion axis components effectively ensure the stability of the machine during high acceleration and deceleration movements.

Product Parameters

SL NO.	Description	Unit	Details
Machine performance
1	Maximum swivel diameter of the bed	mm	550
2	Maximum machining diameter	mm	360
3	Maximum cutting length	mm	350
4	Maximum distance between two chucks	mm	450
5	Standard Chuck Size	mm	210
CNC system
1	Syntec system		22TB
Spindle
1	Spindle type		Cartridge
2	Spindle specifications/sub-spindle specifications		A2-6 (electric spindle)/A2-5 (electric spindle)
3	Spindle/sub-spindle through-hole diameter	mm	66/56
4	Standard bar diameter	mm	52/42
5	Front bearing hole	mm	100
6	Standard spindle speed	rpm	50-4500
7	Spindle motor power	Kw	15
8	Sub-axis motor power	Kw	11
Turret
1	Power servo turret	mm	BMT55
2	Positions of turret	NO.	12
3	Diameter of cutter plate	mm	330
4	Maximum Boring Bar Diameter	mm	40
5	Tool size	mm	25 x 25
6	Power tool holder power	mm	3.3
7	Rotating speed of power cutter head	rpm	4000
X, Z axis accuracy
1	X, Z axis positioning accuracy	mm	± 0.005
2	X, Z axis Repeat Positioning Accuracy	mm	± 0.003
X-axis parameters
1	X axis travel	mm	230
3	X-axis rapid traverse speed	m/min	24
4	X axis Ball Screw Diameter and Pitch	mm	32 x 10(C3lever)
5	X axis guideway type and dimensions	mm	35 (Roller line rail class P4)
6	X-axis motor power	Kw	3.4
Z-axis parameters
1	Z1 axis travel	mm	400
2	Z2 (secondary axis) maximum travel distance	mm	530
3	Z-axis rapid traverse speed	m/min	24
4	Z axis ball screw diameter and pitch	mm	40 x 10(C3lever)
5	Zaxis guideway type and dimensions	mm	45 (Roller line rail class P4)
6	Z-axis motor power	Kw	3.4
Y-axis parameters
1	Y axis travel	mm	±50
2	Y-axis ball screw diameter and pitch	mm	32 x 10(C3lever)
3	Y-axis guideway type and size	mm	30 (hardtrack class P4)
4	Y-axis motor power	Kw	2.4
Other
1	Cooling box capacity		100
2	Power Chassis Capacity		35
3	Machine size	mm	3000 X 2000
4	Machine weight	kg	5000

Detailed Photos
Company Profile
Certifications
Our Advantages
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
