Product Details
Product Description
Product Description

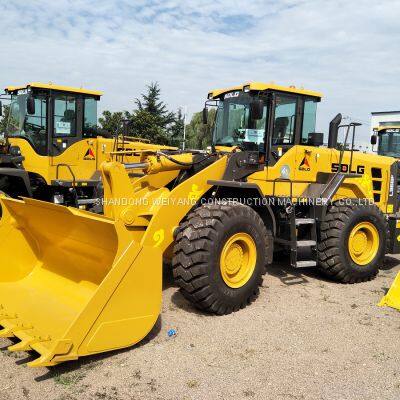

L968F is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. It is equipped with the WD10G240E202 engine(Lnline,water-cooled,dry cylinder liner,direct injection) , with strong power and high reliability;2. It is light and easy to operate, with long service life; Large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
3.single-stage three-element torque converter and axis-flxed elecreo-hydraulic transmission ,Load sensing full hydraulic articulated steering ,with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment; The air conditioner and ROPS&FOPS cab can be installed optionally, which ensures good comfort.
6. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance,high coefficient of fullness and high reliability.
Overall dimension
|
L*W*H
| 8680*3038*3470mm
|
Wheel base
| 3400mm
|
Min. ground clearance
| 530mm
|
Max. dumping height
| 3200mm
|
Dumping distance
| 1140mm
|
Dumping angle
| 45
|
wheel tread
| 2250mm
|
steering angle
| 38
|
horizontal crossing radius
| 7057mm
|
Min. turning radius
| 6062mm
|
Overall parameters
|
Backet capacity
| 3.5m3
|
Rated load
| 6000kg
|
1745017450operating weight
| 19800kg
|
Max. tractive force
| 170kN
|
Max. breakout force
| 210kN
|
Tipping load
| 128kN
|
Engine
|
Model
| WD10G240E202
|
Type
| Lnline,water-cooled,dry cylinder liner,direct injection
|
Rated power
| 178kW
|
Rated speed
| 2100r/min
|
Engine displacement
| 9726ml
|
Max. torque
| 1000N.m
|
Emission standard
| GB20891-2007（stage II）
|
Min. fuel-consume ratio
| 210g/kw.h
|
Transmission system
|
Torgue converter
| single-stage three-element torque converter
|
Transmission type
| Axis-flxed elecreo-hydraulic transmission
|
Gears
| Forward 4 reverse 4
|
Hydraulic system of working device
|
Type
| Hydraulic pilot control
|
total time
| 11.2s
|
Brake system
|
Service brake type
| Air over hydraulic disc type
|
Parking brake type
| Electric pneumatic disc type
|
Steering system
|
Type
| Load sensing full hydraulic articulated steering
|
System pressure
| 16Mpa
|
Fill capacity
|
Fuel
| 350L
|
Hydraulic oil
| 250L
|
Engine
| 20L
|
Transmission
| 17.1L/4.7
|
Drive axle
| 2*40L
|
|
|
>>
