Lift Table Universal Horizontal Milling Machine (X6132)

US$3,500.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6132

Type

Knee-and-Column Milling Machine

Object

Hardware

Structure

Ram

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Normal Precision

Certification

CE, ISO 9001

Condition

New

Spindle

ISO40

Table Size

320X1325mm

Max Longitudinal Travel(Manual/Auto)

700/680mm

Max Transverse Travel(Manual/Auto)

255/240mm

Max Vertical Travel(Manual/Auto)

320/300mm

Distance Between Spindle Axis Table

30/350mm

Spindle Speed Step

18 Steps

Main Motor Power

7.5kw

Overall Size (L x W x H)

2294X1770X1610mm

N.W/G.W

2650/2950kgs

Transport Package

2pcsin One Wooden Case

Specification

ISO9001

Trademark

T brand

Origin

Shandong, China

HS Code

84592900

Production Capacity

300 Sets/Month

Product Description

Product Description

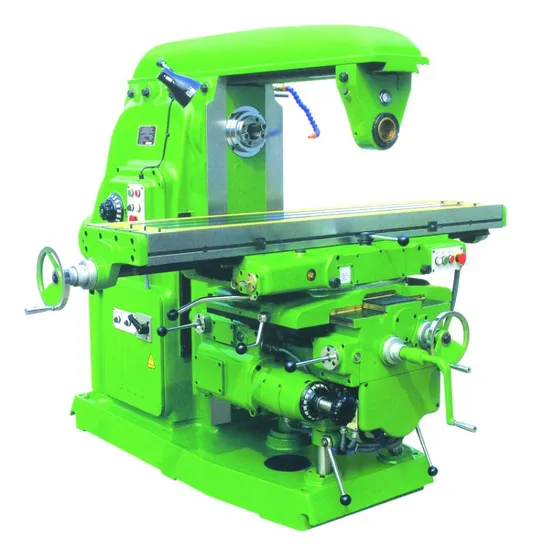

lift table Universal horizontal milling machine (X6132)

Main features of our milling machine:
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
Product Parameters

Specification of our lift table milling machine:

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240

Standard accessories of our horizontal milling machine:
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches.
Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit
