Ce Certificate Superior Quality Hand Pulling Chain Block / Hoist

Product Description

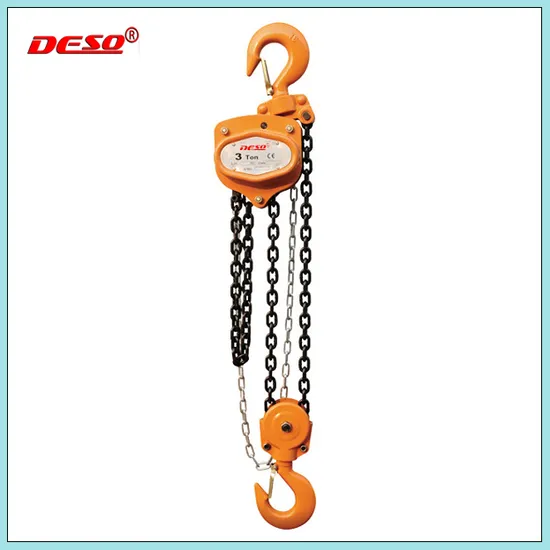

Chain Block / Chain Hoist (A type)
* Compact design, low headroom
* High precision gears
* High endurance roller on load sprocket
* Double pawl brake system
* Engineering-optimized hand chain wheel, preventing hand chain stuck in Fast Operation
* High precision load chain guide
* Quenched and tempered high tensile G80 load chain and hooks
* Smooth surface with powder coated preventing rust
* Individual serial No. for each set, wheel cover with DESO logo and WLL embossed.

Product	Chain block (A type)
Material	Gear
	Hook
	Chain
Capacity	0.5t~100t
Feature	* High efficiency, small pulling effort and easy maintenance * Overload limiter protects hoist mechanism is available * Wet friction discs with longer life * Wider opening hook of easier handling shape * Forged upper and bottom hooks with forged steel safety latches * Double pawls supporting fail-safe brake mechanism for secure operations
Delivery Time	20~40 days, based on Qty
Packing	Carton / Wooden case / Wooden case + Pallets as required
Application	Widely used in the dock, logistics operations, factory warehouses, construction and modern production lines

Capacity (T)	Lift (M)	Test Load (kN)	Pull to lift rated load (N)	Strands of load chain	Load chain dia.(mm)	Dimension				Net weight (kg)	Extra weight of one m lift (kg)	Packing size (cm)
						A	B	C	D
0.5	2.5	6.3	231	1	6	115	136	270	25	7	1.5	20*16*19
1	2.5	12.5	309	1	6	143	156	317	27	10.5	1.8	23*18*20
1.5	2.5	18.8	320	1	7.1	148	182	399	34	17	2.1	27*22*22
2	3	25	320	1	8	152	198	414	36	18	2.3	27*22*22
3	3	37.5	360	2	7.1/8	148	182	465	38	21/22	3.1/3.8	31*23*21
3	3	37.5	414	1	10	181	266	636	48	32	3.2	40*25*24
5	3	62.5	414	2	9/10	181	266	636	48	38/40	4.6/5.4	42*28*24
7.5	3	94	420	3	10	181	365	798	57	52	7.3	50*49*28
10	3	125	420	4	10	181	365	798	57	70	9.8	54*49*28
12	3	150	420	4	10	181	365	798	57	80	9.8	54*49*28
15	3	187.5	430	6	10	181	485	920	84	125	14.2	78*72*34
20	3	250	420*2	8	10	192	630	890	84	162	19.6	78*72*34
30	3	375	450*2	12	10	330	670	1000	84	228	28.3	88*78*42
50	3	625	450*2	22	10	410	900	1950	130	1085	50	160*130*75
75	3	937	450*2	30	10	570	900	2100	160	1600	68	160*130*75
100	3	1250	450*2	38	10	675	900	2300	180	1800	87	180*150*90
