| US$9,800.00-10,300.00 | 1 Set (MOQ) |

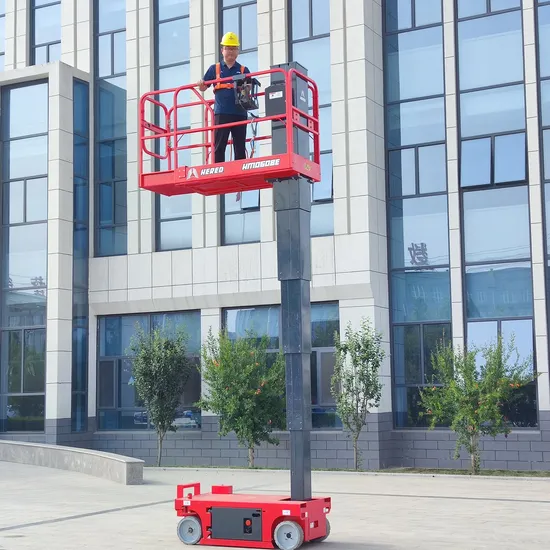

| MODEL | HM0608E |
| Max.Working Height | 7.7m |
| A-Max. Platform Height(In/out) | 5.7m |
| B-Platform Length | 1.5m |
| C-Platform Width | 0.78m |
| Extension Size | 0.5m |
| D-Heights (Rails Up) | 1.99m |
| E-Length (with Ladder) | 1.71m |
| F-Overall Width | 0.8m |
| G-Wheel Base | 1.21m |
| H-Clearance (Stowed) | 0.08m |
| I-Clearance (Raised) | 0.02m |
| PERFORMANCE | |
| Platform Capacity | 200kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 1/0 |
| Max.Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.6km/h |
| Turning Radius (In.) | 0.6m |
| Turning Radius (Out.) | 1.8m |
| Up/Down Time | 32/32s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Drive | Double-Rear |
| Tires (mm) | 323X100mm |
| POWER | |
| Batteries (V/Ah) | 2X12V/100Ah |
| Charger | 100-240VAC/6.3A |
| WEIGHT | |
| Weight | 1105kg |
