Multifunctional Reflux Plate Home Alcohol Distiller Commercial Alcohol Distillation Equipment

Product Description

Product Parameter

Product Name:	Multi-functional Reflux Plates Alcohol Still
Capacity(L):	400L - 2000L
Weight(KGS):	300Kgs - 2000Kgs
Heating Method:	electric, gas, steam, wood fire
Power(KW):	0.75 - 110KW
Voltage(V):	110V/220V/240V/380V
Material:	SS304/SS316/red copper
Application:	Production of Vodka,Whiskey, Brandy, Gin
Certificate:	CE, Atex

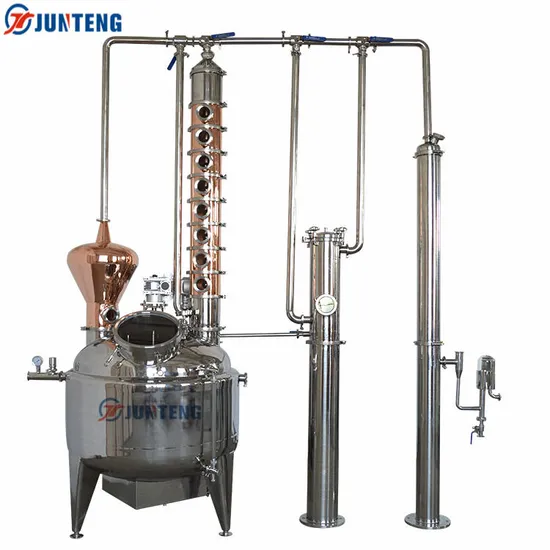

This bubble cap plates reflux still is ideal for making Gin, Whiskey, Brandy. The distiller can control the flow direction easily by adjusting the three-way ball valves in order to make different kinds of alcohol. These copper bubble plates are used in a flute still column positioned between sections to help with separation of alcohol and waters. The alcohol water bubbles up on the plates allowing the distiller to see the action happening in the still column. More bubble cap plates in a column and a taller column with a reflux condenser or dephlegator create a high percentage neutral spirit. Copper bubble plates can be taken apart and cleaned with citric acid or mild acid solution. It can be used as a pot still too if you close the channels of reflux plates column by the three ways valves. So it meets multi-purposes of alcohol distillation.

Product Display


01.STILL POT
lt is used for heating mash.This boiler can be built in single wall or jacketedwall. The pot can be heated by electric, steam, gas or even wood per need.

02.HELMET/GOOSE NECK
This is an expansion chamber sitting on the top of the still pot. lt helps holdback higher boiling compounds while allowing desirable aromatics and flavorsto continue up the column. This is very important for making alcohol with excellent taste.
03.REFLUX COLUMN
Bubble plates are used to create more reflux in the column, ultimately to create multiple distillation cycles during one run. The number of plates means the time of distilation you have for one run.

04.DEPHLEGMATOR
A dephlegmator is sometimes incorporated into the top of a column still. It uses "active cooling" to force the condensation of alcohol vapor and induce reflux action.
05.GIN BASKET
The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients.

06.PRODUCT CONDENSER
In the context of a still, the condenser is a device that cools down whatever hot vapors that flow through it to the point where the vapors condense into a liquid.
07.PARROT
A parrot is a device that allows for measurement of the proof of alcohol comes out of the still.


Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, pharmaceutical equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.

---
