Plum Blossom Rewinding Machine for Reliable Wire Bobbin Production at 300m/Min

Product Description

Experience unparalleled precision and exceptional efficiency with our high-quality Wire Coiling Machine, expertly designed for carton winding and wire bobbin applications. This state-of-the-art Wire Bobbin Machine is engineered to meet the rigorous demands of modern production, ensuring flawless and reliable operation every time. Elevate your wire coiling process with a machine that guarantees excellence and durability, tailored to optimize your productivity and performance.

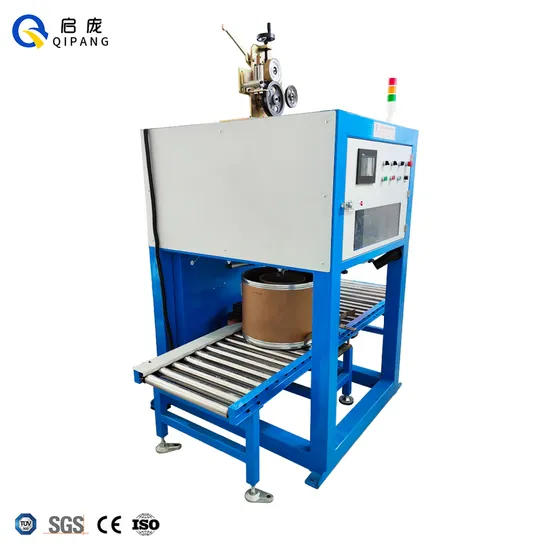

Product drawing
The Plum Blossom Barrel Take-Up Machine is your go-to solution for square or round carton packaging of flexible wires including vehicle and electronic wires. Experience seamless operation whether using it for standalone inverted spooling or in conjunction with an extrusion line. This sophisticated equipment boasts exceptional production efficiency, complemented by a unique vibration device that ensures precise and orderly line arrangement, eliminating any risk of tangling and bringing unmatched tidiness and reliability.

Model	Wire diameter	bucket size	Max weight	Color
ML500	φ2-6mm	500mm	75-100kg	grey
Speed	Motor	Forming style	PLC	Automatic
300m/min	4KW	Quincunx	Taida	yes

Detailed Photos
Experience the cutting-edge technology of our equipment, designed with a high degree of automation to streamline your processes. The user-friendly interface ensures convenience and efficiency, enabling quick and easy operation. Enjoy seamless automatic barrel changes and benefit from the integration with an external spark machine. Furthermore, our system features advanced concave and convex meter capabilities, allowing for the effortless exclusion of waste lines, thus optimizing your production workflow.
Product Parameters
I. Main Accessories Brand: Boasting an exquisite selection of main accessories, our machine incorporates only prestigious brands for all electrical appliances and bearings, ensuring reliability and longevity.
1. Motor: A constant speed AC motor that delivers unyielding performance and stability.
2. Controller: Equipped with a sophisticated Japan Yaskawa 415V inverter, offering precision control and efficiency.
3. Programmable Design Controller: The renowned Delta brand provides unparalleled programmability and flexibility.
4. Electrical Appliances: Every electrical component is sourced from the reputable Chint and Shilin brands, ensuring optimal functionality and safety.
5. Bearing: Using the trusted Harbin and NSK bearings, our machine runs smoothly and efficiently.
II. Main Specifications and Performance:
1. Applicable Outer Diameter: Skillfully accommodates wire diameters ranging from Ф2mm to Ф6.0mm, providing versatile production capabilities.
2. Height of Packaging and Conveying Platform: Conveniently set at 350mm for seamless operation and handling.
3. Dimensions: With an outer diameter of 500mm and a height of 400-500mm, it supports a weight range of 75-100kg, offering robustness and capacity.
III. The Plum Blossom Take-Up Machine Composition Specifications:
1. Adaptable Wire Diameter: Effortlessly manages soft wire diameters up to MaxФ6 mm, enhancing versatility.
2. Line Speed Adaptability: Masterfully adapts to a maximum line speed of 300m/min, optimizing productivity.
3. Power: Driven by a robust 4KW AC motor, utilizing three-phase 380V voltage for superior performance.
4. Molding Pattern: Ingeniously forms an overlapping plum blossom shape, ensuring organized and aesthetic wire arrangement.
5. Vibration Device: Powered by a 1/2hp gear motor, the vibration platform enhances the cable barrel's capacity, encrypts cables through vibration, reducing transportation loss.
6. Adaptability to Falling Barrel: Accommodates outer barrel inner diameter of 575mm, inner barrel outer diameter of 300mm, height of 585mm, or other bespoke sizes.
7. Meter Forecast Function: Features automatic barrel changing, line storage, and manual waste elimination for efficiency and waste reduction.
8. Threading Method: Facilitates rapid stringing, saving time and enhancing productivity.
9. Usability: Perfect for preparing round wire in plum blossom pattern into barrels, simplifies subsequent processes like cutting and peeling, preventing knots, and supports cutting speeds up to 10m/s.
10. Weight: A manageable 200kg, promoting ease of installation and mobility. Plum Blossom Take-Up Machine.
11. Operation Direction: Personalized to meet the unique specifications and preferences of our esteemed customers.
12. Machine Color: Elegantly finished in a tasteful off-white, blending sophistication with style.
Product Application

Embrace the Efficiency of the Plum Blossom Take-Up Machine Premium Auxiliary Parts:
1. Seamlessly integrate with the auxiliary inlet guide frame and sophisticated steering mechanism for enhanced performance.
2. Captivating Visuals of the Device Plum Blossom Take-Up Machine
Company Profile

Shanghai Qipang Industrial Co., Ltd., a distinguished leader in the industry, boasts over 20 years of unparalleled production expertise, with a steadfast focus on cable testing machines and cable winding machines since its inception. Our company prides itself on having its own state-of-the-art production and assembly workshops. We invite you to experience our quality firsthand through video or on-site inspections of our factory. Furthermore, we offer a highly skilled sales and technical team, dedicated to providing exceptional service before and after your purchase. Our team is available around the clock, ensuring you receive prompt answers to any inquiries you may have.
Discover our top-tier selection of machinery, including high-quality wire coiling machines, advanced carton winding machines, and precision wire bobbin machines, designed to deliver outstanding performance and efficiency.

---
