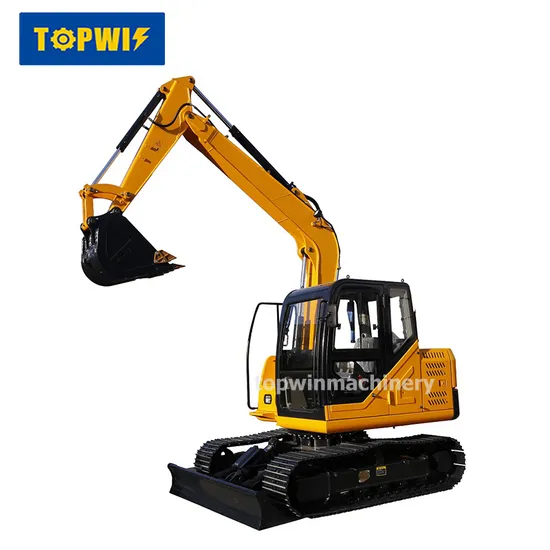

Chinese Xuzhou Excavator 1 Cubic /Backhoe/Crawler Excavator/Wheel Excavator/Model Xe215c/Xe215D

Product Description

Product Description

Excavator Main configs.:
1-KUBOTA V2607 engine , 42.4kw/2000rpm, tier III,
2-REXROTH brand pump
3-HUSCO brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Luxury full seal cabin with A/C and LCD display and LED lights etc.
7-ITALY Hydraulic pilot servo operation system
8-Steel track :400mm
9-With broken pipeline system
10- Bucket capacity: 0.21m³
11-With dozer blade
Excavator Main features: 1) High efficiency and low fuel consumption.
2) Imported hydraulic components with excellent operability, flexible action, and precise operation.
3) Adapting to various working conditions like hills and muddy areas.
4) Short turning radius, variable amplitude chassis, boom deflection, suitable for narrow space operations.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing.
Excavator attachments:
A tool for every job
Buckets - General Purpose Buckets - Ribbed Buckets - Ditch Maintenance Grading Buckets Buckets - Tapered Ditching Tilting Grading Bucket
Jack Hammer Or Breaking Hammer Or Breakers,
Quick Hitches,
Auger Or Earth Drill,
Thumb Bucket,
Sweeper,
Log/stone/steel Grapple,
Ripper tooth,
Rake,
Hand Held Tools,
Compactor,
Rock whee,
Extending dippers,
Hydraulic pulverizer,
Pile hammer,

Product Parameters
Excavator technical specs. :

Model	TWE65	TWE75	TWE135	TWE180	TWE230
ENGINE
Emission Standard	Tier 3/ Stage III	Tier 3/ Stage III	Tier 3/ Stage III	Tier 3/ Stage III	Tier 3/ Stage III
Make /Model	KUBOTA/V2607	KUBOTA(V2607)	ISUZU 4JJ1	CUMMINS QSF3.8	CUMMINS QSB7-C166
Power /Rotation speed	42.4kw(58HP)@2000rpm	42.4kw(58HP)@2000rpm	73kw(99HP)@2000rpm	93kw(127HP)@2200rpm	124kw(169HP)@2050rpm
Number of cylinder	4	4	4	4	6
TRACK SYSTEM
Maximum Travel speed	2.4/4.3 km/h	2.5/4.5km/h	2.6/4.2km/h	3/4.2km/h	3.0/5.0km/h
Width of track shoe(Rubber &steel track)	400mm	450mm	500mm	600mm	600mm
Number of track shoe per side(steel track only)	40pcs	39pcs	44pcs	47pcs	47pcs
Number of upper roller per side	1	1	2	2	2
Number of bottom roller per side	5	5	6	7	9
PERFORMANCE PARAMETER
Standard Bucket capacity	0.21m³	0.28m³	0.6m³	0.8m³	1.1m³
Swing speed	11rpm	11rpm	12rpm	12rpm	11rpm
Maximum Grade ability	35°	35°	30°	30°	30°
Maximum Bucket digging force	48KN	56KN	91KN	98KN	140KN
Maximum Arm digging force	35KN	38KN	55KN	68KN	99KN
Hydraulic system pressure	28Mpa	27Mpa	32Mpa	32Mpa	34.3Mpa
Machine weight	6500kg	7500kg	13500kg	16500kg	22500kg
MACHINE SIZE
Overall dimension (L*W*H)	5940mm*1880mm*2570mm	6054mm*2216mm*2672mm	7635mm*2500mm*2750mm	8540mm*2720mm*2920mm	9565mm*2990mm*3000mm
Axle base/Track length on ground	1990mm	2209mm	2750mm	3200mm	3700mm
Track gauge	1480mm	1745mm	2950mm	2120mm	2390mm
Minimum Ground clearance	353mm	375mm	2000mm	480mm	580mm
Swing radius at tail	1689mm	1730mm	400mm	2430mm	3424mm
WORKING RANGE
Maximum Digging height	5499mm	7023mm	8540mm	9430mm	9680mm
Maximum Dumping height	3845mm	5195mm	6125mm	6960mm	6770mm
Maximum Digging depth	3808mm	3898mm	5095mm	5975mm	6000mm
Maximum Vertical digging depth	2983mm	2968mm	4650mm	5630mm	6000mm
Maximum Digging radius	6128mm	6182mm	8000mm	8985mm	9935mm
Minimum swing radius	2607mm	1740mm	2445mm
Shipping method	1 unit in 40GP container	1 unit in 40GP container	by RORO ship or bulk vessel	by RORO ship or bulk vessel	by RORO ship or bulk vessel

Product Details
Excavator configurations. :
Packaging & Shipping
1 unit 6ton excavators in one 40 feet container
Company Profile

Shandong Topwin Machinery Co.,Ltd. (TOPWIN for short) is the one-stop solution provider for construction machinery, mining machinery, agricultural machinery and logistic machinery in China.
With more than 10 years experience in this field, TOPWIN has served various clients from USA, Canada, Mexico, Brazil, Argentina, Australia, Indonesia, Kazakhstan, Russia, Zimbabwe, Mozambique, Zambia, South Africa, etc.. We are helping our clients to succeed in every project by offering high cost-effective and reliable machines.
TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, fertilizer manufacturing, etc.. That's why we get repeat purchases and more new clients from different countries and regions.
TOPWIN values high quality products and immediate response to clients' demand. We know how important it is for client to have a product that not only keeps on doing its job throughout the day, but also keeps on doing so for many years.
We offer full guidance to service and maintenance to make sure the machines are running normally with maximum productivity. To achieve that, we provide the clients with full support from day one.

---
