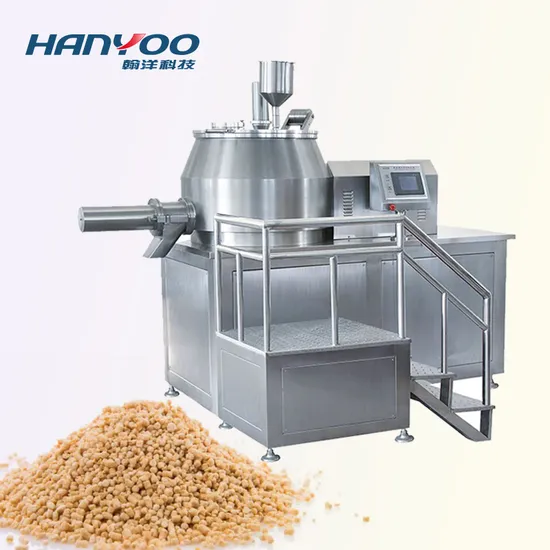

Hanyoo High Efficiency Mixing and Granulation Machine High Shear Mixer Granulator

Product Description

GHL High Quality Factory Price Pharmacy Mixing Granulator
Product Introduction
This machine is widely used in pharmaceutical, food, chemical and light industries. etc, to blend powdery materials and granulate. The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and oiling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameter

Model		GHL-10	GHL-50	GHL-100	GHL-200	GHL-300	GHL-400	GHL-600
Volume(L)		10	50	100	200	300	400	600
Working Volume(L)		2-6	12-36	25-70	50-150	60-220	100-280	150-420
Loading capacity(kg)		1-3	6-8	12-35	25-75	30-110	50-140	75-210
Max.inside diameter(mm)		300	498	628	788	988	988	1150
Rotational speed of stirring paddle(rpm)		50-500	50-500	30-360	30-260	20-200	20-200	20-150
Stirring motor(kw)		2.2	5.5	7.5	15	22	22	30
Rotational speed of cutter(mm)		50-3000	50-3000	50-3000	50-3000	50-3000	50-3000	50-3000
Cutting motor(kw)		0.75	1.5	3	4	7.5	7.5	11
Discharge in front	Length(mm)	/	/	/	2500	2700	2700	/
	Width(mm)	/	/	/	1400	1760	1760	/
Discharge in left	Length(mm)	1500	2100	2400	2250	2500	2500	2900
	Width(mm)	570	780	900	1700	1960	1960	2330
Height of discharge outlet(mm)		700	725	750	930	930	930	1150
Height(mm)		1350	1500	1700	2100	2220	2320	2600
Weight(Kg)		260	420	760	1200	1600	1650	3000
