Product Details
Product Description
Product Description
Brief Introductions:
Type:
| 1A1
|
Bond:
| Resin
|
Application:
| Thermal Spray Coating industry
|
Specification:
| Customized
|
Brand Mark:
| Moresuperhard
|
Trade Terms:
| FOB
|
Packages:
| Hard carton
|
Delivery Time:
| 15 workdays by express
|
Introductions of Moresuperhard’s Resin Grinding wheel
More Super hard provides a full range of thermal spray coating grinding solution and service, which includes
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone

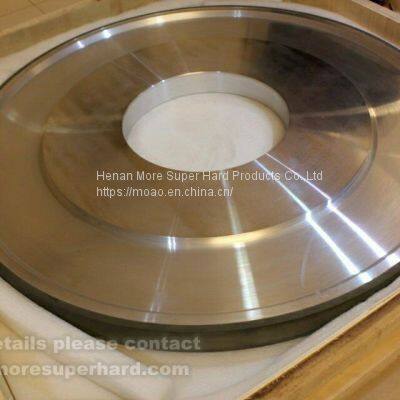

Model: 1A1 diamond wheel (diameter up to 1100mm)
External Cylindrical grinding, Internal grinding
Type
| Diameter(inches)
| D(mm)
| H(mm)
| X(mm)
| T(mm)
| U(mm)
|
1A1
| 4”
| 100
| 20
| 6
| 12
|
|
1A1
| 100
| 20
| 10
| 10
|
|
1A1
| 100
| 20
| 10
| 12
|
|
1A1
| 100
| 25.4
| 10
| 20
|
|
1A1
| 8”
| 200
| 76.2
| 10
| 25
|
|
1A1
| 12”
| 300
| 76.2
| 10
| 25
|
|
1A1
| 300
| 127
| 10
| 25,30,40
|
|
1A1
| 300
| 127
| 25
| 50
|
|
14A1
| 300
| 127
| 6,10
| 40
| 10
|
14A1
| 300
| 127
| 10
| 40
| 15
|
1A1
| 16”
| 400
| 127
| 10,25
| 25
|
|
1A1
| 400
| 127
| 10
| 30,40,50
|
|
1A1
| 20”
| 500
| 203
| 10
| 15,20
|
|
1A1
| 500
| 254
| 38
| 25,50
|
|
1A1
| 24”
| 600
| 254
| 25
| 25
|
|
1A1
| 600
| 304.8
| 5
| 40
|
|
1A1
| 600
| 203
| 25
| 50
|
|
1A1
| 600
| 304.8
| 10
| 50
|
|
1A1
| 30”
| 750
| 304.8
| 10
| 40,50
|
|
1A1
| 35.4”
| 900
| 304.8,305
| 10
| 50,75
|
|
1A1
| 36”
| 914.4
| 304.8,305
| 10
| 50.8
|
|
1A1
| 43”
| 1100
| 304.8
| 10
| 50
|
|
We can also be customized according to your requirements.
|
Detailed Specifications can be customized!
Application case of Moresuperhard’s Resin Grinding wheel
Operation
| External grinding
|
Workpiece
| Roll Diameter 120—1000 mm, Length 1.5—10 mm
|
Material
| HVOF spraying tungsten carbide or ceramic coating on a steel body
|
Dressing
| white aluminum oxide 240#
|
Machine
| External grinding machine
|
Coolant
| Emulsion, Pressure: >/= 3 Bar
|
Diamond wheel specification
| 1A1 D750*T50*H304.8*X10 mm D126 N100 Aluminum wheel body
|
Parameters
| Wheel speed: 18—24 m/s,
Depth of cut：0.01 –0.03 mm
Feed: 300—800 mm/min
Roll speed: 15—20 m/s
|
>>
