Butterfly Type Vacuum Tube Solar Thermal Collector

Product Description

Vacuum Tube Solar Collectors is the lowest cost collector, widely used in Schools, Hospitals, Swimming Pool project.
Key advantages.
1. Manufacturer Certificate: CE, ISO9001: 2008, CCC, EN12975-1, 2, SRCC

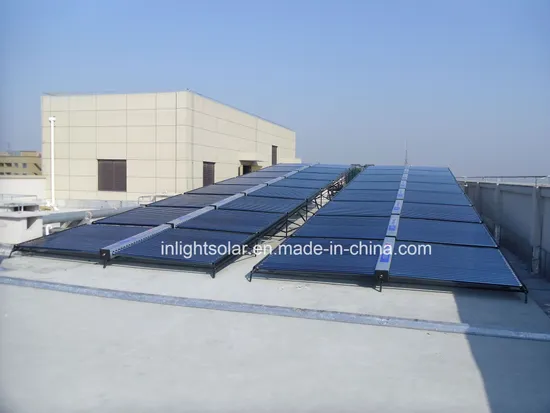

2. Especially designed for large-scale hot water heating project, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools.
2. All-glass vacuum tube, most economical and good performance.
3. Stainless steel shell and bracket make it a good resistance to acid rain and other erosions
4. Easy installation and connection and little maintenance needed
5. Warranty: 5 years for integrated system and 15 years for vacuum tubes.

One Wing Solar Collector
Item No.	Solar Vacuum Tube		Collector Size	Package	Container Loading
	Tube Size/ mm	Tube Nos.	L*W (mm)	Volume/cbm	20GP	40HQ
ILVC-4715V18-CG	Φ47*1500	18	1720*1230	0.22	133	321
ILVC-4715V20-CG	Φ47*1500	20	1720*1480	0.24	121	293
ILVC-4715V25-CG	Φ47*1500	25	1720*1805	0.29	101	243
ILVC-4715V30-CG	Φ47*1500	30	1720*2130	0.35	83	201
ILVC-4715V36-CG	Φ47*1500	36	1720*2520	0.41	71	170
ILVC-5818V15-CG	Φ58*1800	15	2025*1225	0.27	108	261
ILVC-5818V20-CG	Φ58*1800	20	2025*1680	0.36	80	192
ILVC-5818V25-CG	Φ58*1800	25	2025*2055	0.43	68	164
ILVC-5818V30-CG	Φ58*1800	30	2025*2430	0.53	54	131
ILVC-5818V36-CG	Φ58*1800	36	2025*2880	0.61	47	114
1. Inner of manifold: Food-grade stainless steel SUS304-2B 0.4mm
2. Exterior Shell: Color steel / Aluzinc / Fluorocarbon plate 0.4mm
3. Insulation: High-density polyurethane integrated foam-forming layer 40-50mm
4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded
5. Vacuum Tube: Borosilicate glass vacuum tube, Cu-SS-ALN/AIN coating
6. Bracket: Painted black galvanized angle steel
7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal
8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°)
9. Hail Resistance: Φ25 mm (tilt angle≥40°)
Butterfly Solar Collector
Item No.	Solar Vacuum Tube		Collector Size	Package	Container Loading
	Tube Size/ mm	Tube Nos.	L*W (mm)	Volume/cbm	20GP	40HQ
ILVC-4715V40-CA	Φ47*1500	40	3110*1480	0.37	78	189
ILVC-4715V50-CA	Φ47*1500	50	3110*1805	0.52	55	134
ILVC-4715V60-CA	Φ47*1500	60	3110*2130	0.63	46	111
ILVC-5818V40-CA	Φ58*1800	40	3710*1680	0.67	43	104
ILVC-5818V50-CA	Φ58*1800	50	3710*2055	0.80	36	87
ILVC-5818V60-CA	Φ58*1800	60	3710*2430	1.00	29	70
1. Inner of manifold: Food-grade stainless steel SUS304-2B 0.4mm
2. Exterior Shell: Color steel / Aluzinc / Fluorocarbon plate 0.4mm
3. Insulation: High-density polyurethane integrated foam-forming layer 40-50mm
4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded
5. Vacuum Tube: Borosilicate glass vacuum tube, Cu-SS-ALN/AIN coating
6. Bracket: Painted black galvanized angle steel
7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal
8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°)
9. Hail Resistance: Φ25 mm (tilt angle>40°)

---
