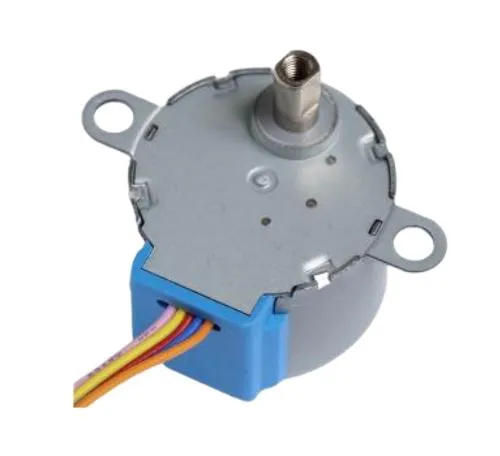

OEM/ODM Available 28byj 4 Phase 5 Wire Electric DC 5V/12V/24V Mini Micro Stepper Gear Motor Stepping Motor Driver

Product Description

OEM/ODM Available 28byj 4 Phase 5 Wire Electric DC 5V/12V/24V Mini Micro Stepper Gear Motor Stepping Motor Driver
1. Safe, low energy comsuption, low noise, good starting, stable performance, long life;
2. Strong power;
3. Rated voltage DC 5V/12V/24V optional, customization is welcome.
Typical used:
Monitor, air purifier, automatic door lock, integrated ceiling, refrigerator, air conditioner, dehumidifiers, electric toothbrush, medical beauty euipments, etc.
Specifications:

Model	28BYJ	Pull-in Torque	≥34.2mN.m(120Hz)
Rated Voltage(V)	DC12V	Detent Torque	≥34.3mN.m
Number of Phases	4	Insulation Resistance	>10Ω(500V)
Reduction Gear Ratio	1:64	Dielectric Strength	AC600V/1mA/1S
Step Angle	5.625°/64	Insulation Class	A
Pattern of Drive	4 phase 8 beat	Coil Temperature Rise	<40K(120Hz)
Direct Current Resistance	200Ω±7%(25ºC)	Noise	<40dB(A)
No-load Pull-in Rate PPS	≥600Hz	Weight	About 40g
No-load Pull-out Rate PPS	≥1000Hz	According to Class where tolerance is not given	GB1804-m

ABOUT US
Greatupmotor group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.We will keep doing our job,move forward step by step to make our business area wider and brighter.

---
