Hydraulic Plate Shearing Machine Manufacturer

Product Description

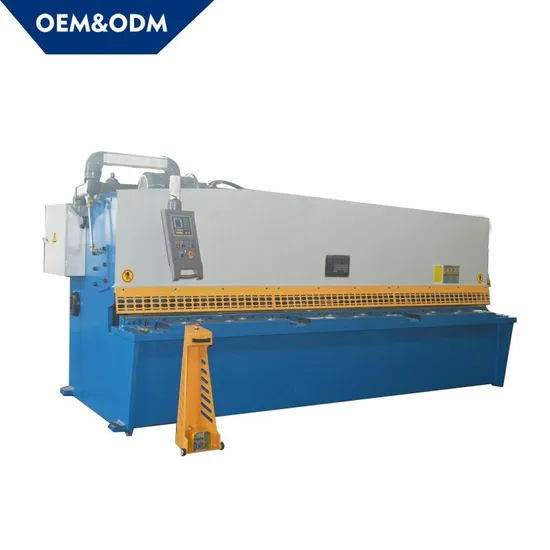

Hydraulic plate shearing machine manufacturer
1.This hydraulic swing beam shear is of total European design: streamlined looking monoblock.
The frame of this machine is steel welded construction, and stress is eliminated by vibration,
so it is with high strength, stable performance, easy operation and convenient maintenance.
2.As the cutting knife beam has been designed in inner-inclined structure,
it is easy for plates to fall down and the accuracy of products can be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator.
4.Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing.
5.The position of low blade is adjustable,
thus ensuring the equilibrium of the gap between blades after regrinding;
6.It is easy and quick to adjust the gap between upper and down blades.
The value of the gap is indicated on a manual adjustable dial.
7.ESTUN E21 ,DELEM DAC360 adjusting for the back gauge.
8.Cutting times of this hydraulic swing beam shear are controlled by NC or CNC controller.
9. A set of standard upper and lower blades.
10.Standard front support sheet frame;
11.Protection fence and the electric interlocker to ensure the safety of the operator;
12.This machine is certified by the European Union CE certification and ISO quality system certification.
Optional Specifications:

No	Model	Max cutting thickness	Max cutting width	cutting angle	Ram strokes	Backgauge range	Motor	Machine size
		mm	mm	.	n/min	mm	kw	mm
1	4x2500	4	2500	1.3	18	20-600	4	3150x1650x1700
2	4x3200	4	3200	1.3	18	20-600	5.5	3840x1675x1600
3	4x4000	4	4000	1.3	12	20-600	5.5	4640x1850x1750
4	4x5000	4	5000	1.3	10	20-600	7.5	5660x2050x1900
5	4x6000	4	6000	1.3	7	20-800	7.5	6730x2250x2500
6	6x2500	6	2500	1.3	18	20-600	7.5	3130x1675x1600
7	6x3200	6	3200	1.3	14	20-600	7.5	6840x1675x1620
8	6x4000	6	4000	1.3	14	20-600	7.5	4630x1850x1700
9	6x5000	6	5000	1.3	12	20-800	11	5660x2050x1950
10	6x6000	6	6000	1.3	10	20-800	11	6700x2300x2300
11	8x2500	8	2500	1.3	12	20-600	11	3130x1530x1600
12	8x3200	8	3200	1.3	10	20-600	11	3840x1675x1620
13	8x4000	8	4000	1.3	8	20-600	11	4630x1850x1700
14	8x5000	8	5000	1.3	7	20-800	15	4630x2050x1950
15	8x6000	8	6000	1.3	6	20-800	15	6750x2330x2230
16	10x2500	10	2500	1.3	12	20-600	15	3130x1580x1800
17	10x3200	10	3200	1.3	10	20-600	15	3840x1725x1850
18	10x4000	10	4000	1.3	8	20-600	15	4650x1900x1850
19	10x5000	10	5000	1.3	8	20-800	15	5600x2000x1950
20	10x6000	10	6000	1.3	8	20-800	18.5	6800x2100x2050
21	12x2500	12	2500	1.3	12	20-600	18.5	3235x2045x1935
22	12x3200	12	3200	1.3	10	20-600	18.5	3945x2227x2115
23	12x4000	12	4000	1.3	8	20-600	18.5	4695x2227x2200
24	12x5000	12	5000	1.3	7	20-1000	22	6100x3370x3050
25	12x6000	12	6000	1.3	6	20-1000	30	7100x3370x3050
26	12x8000	12	8000	1.3	5	20-1000	37	8880x2480x3000
27	16x2500	16	2500	2	8	20-600	22	3235x2050x1985
28	16x3200	16	3200	2	7	20-600	22	3395x2230x2158
29	16x4000	16	4000	2	6	20-600	22	4800x2330x2258
30	16x5000	16	5000	2	5	20-1000	30	6200x2430x2358
31	16x6000	16	6000	2	4	20-1000	30	6200x2530x2458
32	20x2500	20	2500	2.3	6	20-600	30	3300x2160x2540
33	20x3200	20	3200	2.3	5	20-600	30	4930x2300x2710
34	20x4000	20	4000	2.3	4	20-600	30	4750x3300x2800
35	20x5000	20	5000	2.3	4	20-1000	37	6000x3400x2900
36	20x6000	20	6000	2.3	4	20-1000	37	7050x3480x3080
37	25x2500	25	2500	2.3	5	20-600	37	3500x3150x3500
38	25x3200	25	3200	2.3	4	20-600	37	4200x3150x3500
39	25x4000	25	4000	2.3	4	20-600	45	4850x3300x3500
40	25x5000	25	5000	2.3	4	20-1000	45	6000x3400x3600
41	25x6000	25	6000	2.3	4	20-1000	45	7050x3500x3700
42	30x2500	30	2500	3	4	20-600	55	3500x3150x3500
43	30x3200	30	3200	3	4	20-600	55	4200x3150x3500
44	30x4000	30	4000	3	4	20-600	55	5000x3250x3600
45	30x5000	30	5000	3	4	20-1000	75	6050x3350x3700
46	30x6000	30	6000	3	4	20-1000	75	7100x3400x3800
47	40x2500	40	2500	3	3	20-600	75	3600x3300x3200
48	40x3200	40	3200	3	3	20-600	90	4300x3300x3400
49	40x4000	40	4000	3	3	20-600	90	5080x3400x3500
50	40x5000	40	5000	3	3	20-1000	90x2	6100x3500x3600
51	40x6000	40	6000	3	3	20-1000	90x2	7200x3600x3700
52	50x2500	50	2500	4	3	20-600	90x2	3800x3500x4700
53	50x3200	50	3200	4	3	20-600	90x3	4300x3600x4800
54	50x4000	50	4000	4	3	20-600	90x3	5100x3700x4900
55	50x5000	50	5000	4	3	20-1000	90x4	6200x3800x5000
56	50x6000	50	6000	4	3	20-1000	90x5	7300x3900x5100

---
