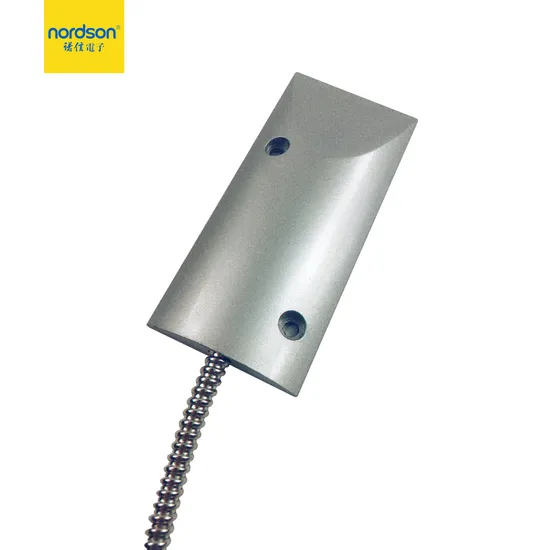

| NK-Y1312 Magnetic Door Contact is an Intrusion Detector for doors and windows status monitoring in security system, which is made of a reed switch and a magnet. When doors and windows are closed, switch contact is affected by magnetic field of the magnet then forms a conducting state; When doors and windows are broken by force, magnet will be far from contact, then switch is disconnected and cause alarm. |
| 1.Monitor window and door status at real time, to alarm and anti-theft for the safety of your property. 2.With Mounting bracket, it can adjust mounting distance, easy and convenient installation. 3.Multiple reed form are for options, to satisfy different need of security system. 4.Made of Zinc alloy case and stainless steel tube wire, it's strong and durable. 5.Door contact can be used more than 100000 times, ultra long working life. |
| Model | NK-Y1312 |
| size | 105*47.5*9.5mm, 88*20*20mm, 50*50mm |
| Reed Form | NC, COM (NO, COM/NC, NO, COM Customization ) |
| Operating Gap | 50-70mm |
| Case Material | Zinc Alloy, silver-gray |
| MAX voltage | 100V |
| Rated current | 0-0.5A |
| Power | 10W |
| Wire rode | 1007UL #22AWG 550mm,380mm Stainless steel tube |
| Switch Life | >100000 times |
| Identification | CE / FCC / RoHS |
| Application | Ideal for roll door |
| Packing | 1pcs/bag , 50pcs/carton ,18kgs/ctn |
