| MODEL | CTZ5025 |
| Maximum drilling diameter (steel parts) | 25 mm |
| Maximum tapping diameter (steel parts) | M18 mm |
| Distance from spindle centerline to column | 240 mm |
| Distance from spindle end face to worktable | 0-650 mm |
| Distance from spindle end surface to base working surface | 865-1100 mm |
| Maximum stroke of spindle | 110 mm |
| Spindle taper hole | MT3 |
| Spindle speed change levels and range | 6 level 125-2825 r/min |
| Maximum stroke of spindle box | 235 mm |
| Maximum travel of worktable and bracket | 440 mm |
| Effective working area of workbench (length × width) | 400×330 mm |
| Effective working area of the base (length × width) | 350×320 mm |
| Number of T-slots and slot width (workbench and base) | 2×14 mm |
| Column diameter | 100 mm |
| Main motor power and speed | 750W 1390r/min |
| Cooling pump motor power and flow | 40W 6 L/min |
| Machine tool dimensions (length × width × height) | 740×440×1895 mm |
| Machine tool weight (net weight) | 350 Kg |

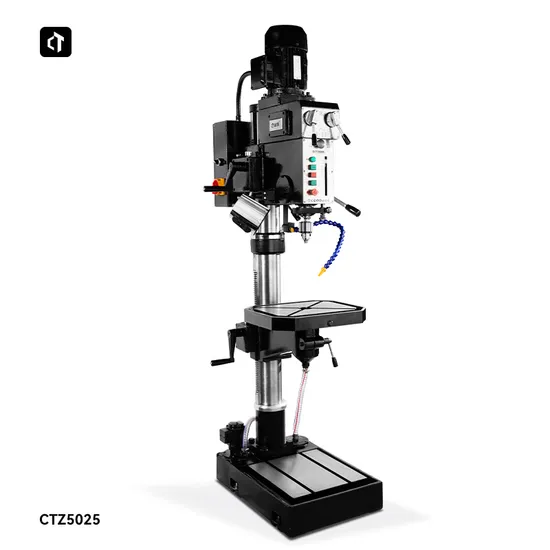

The CTZ5025 cylindrical vertical drilling machine is a multi-functional drilling machine with a wide range of uses. It can perform drilling, reaming, countersinking, reaming, surface scraping, tapping and other processing. Suitable for single-piece and batch production machining and maintenance workshops and small machining enterprises. Main drive single-speed motor with sufficient power, full gear transmission, wide speed range. The spindle system has sufficient rigidity and good wear resistance measures, and has a tool unloading device.
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
