Steel Wires Supporting Armored Figure 8 Outdoor Aerial FTTH Optical Fiber Optic Drop Cable

Product Description

Description:
Steel Wires Supporting Armored Figure 8 Outdoor Aerial Ftth Optical Fiber Drop Cable

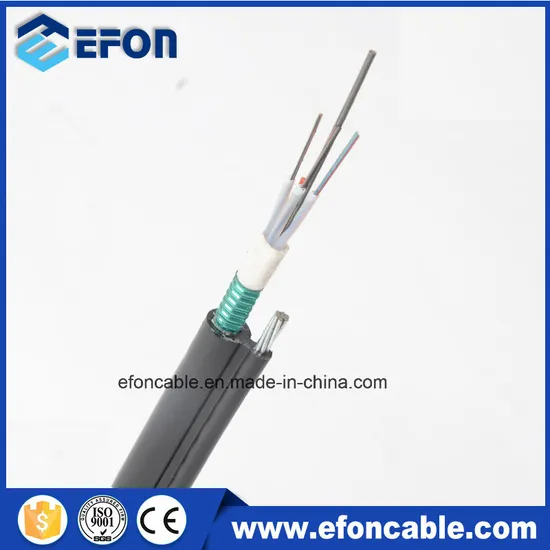

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.
Features
Loose tube gel-filled construction for superiorfiber protection.
CST armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design
Applications
Backbones and Access.
Installed aerially.

Structure and Technical Specifications GYXTC8S(2-24F)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	7.6*15.6	142	7000	4000	1000	300
>12	Available upon customer's request

Structure and Technical Specifications GYTC8S(2-288F)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~30	10.0*18.0	183	6	5	7000	4000	1000	300
32~48	10.7*18.8	206	6	6	7000	4000	1000	300
50~72	11.6*19.4	226	12	5	7000	4000	1000	300
74~96	13.0*20.0	256	12	6	7000	4000	1000	300
>98	Available upon customer's request

Structure and Technical Specifications GYTC8Y(2-288F)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~30	9.2*17.2	150	6	5	7000	3000	1000	300
32~48	10.2*18.2	172	8	6	7000	3000	1000	300
50~72	11.1*19.1	177	12	6	7000	3000	1000	300
74~96	12.4*20.4	201	12	8	7000	3000	1000	300
>98	Available upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales
people for more detailed information.
You May Need : Figure 8 cable fitting

---
