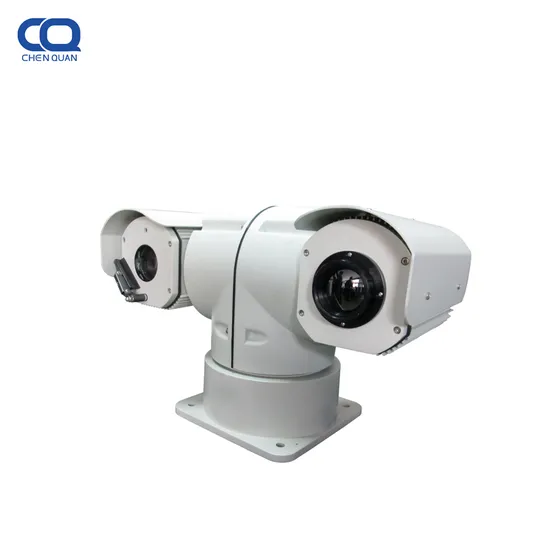

| Model | CQ-BTVC41C02-1930 |
| Thermal Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 1.7km; Recognition: 0.5km; Identification: 0.2km |
| Human (1.8x0.6m) | Detection: 0.7km; Recognition: 0.3km; Identification: 0.15km |
| IVS Range | 0.7km for Vehicle; 0.2km for Human |
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz |
| Pixel Size | 12μm |
| NETD | 40mK |
| Spectral Range | 7.5~14μm, LWIR |
| Thermal Lens | Focal length | 20mm Fixed |
| FOV | 18.5°×14° |
| Angular radian | 0.85mrad |
| Visible Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 9.5km; Recognition: 5.7km; Identification: 2.5km |
| Human (1.8x0.6m) | Detection: 3.7km; Recognition: 2km; Identification: 1km |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) |
| SD Card | Support |
| Visible Lens | Focal Lens | 4.7-141mm 30X |
| Image Stabilization | Support |
| Focus Control | Manual/Auto |
| PTZ | Patrol | 6*patrol route, 1* patrol line |
| Rotation | Pan: 0~360°, tilt: -90~+90° |
| Speed | Pan: 0.01~100°/S, Tilt: 0.01~80°/S |
| Preset | 255 |
| Enhance | Fan/Wiper/Heater attached |
| Environmental | Operate Temp | -25ºC~+55ºC (-40ºC optional) |
| Storage Temp | -35ºC~+75ºC |
| Humidity | <90% |
| Ingress Protect | IP66 |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug |
| Power | 50W (Peak) |
