Steel Standing Seam Roof Panel Forming Machine Bemo Plate Making Machine Price

Product Description

Hot sale Ibr Tr4 Tr5 Pc4 Pv8 Steel Double Layer Deck and Trapezoidal Roll Forming Roofing Sheet Building Material Making Machine Machinery Price
Detailed Photos
Product Parameters
1. Main technical conditions of the forming line:Temperatura: -10 ºC ~ 35 ºC(Temperature:-10ºC~35ºC)Voltage:110volt 60Hz or 220volt 60Hz(or according to customer requestAir pressure:0.6~1.2MpaTotal Power:≈4.5kw)Color:Production capacity:0-15meters/min(without cutting)Dimension (L*W*H): L≈ 1.6 m, W≈ 1.5 m, H≈ 1.2 m 1. Flow Chart of roll forming machine:)2. Main components:

No.	Components Name	Unit Set/Pcs	Marks
1	3-4 tons manual uncoiler	1
2	Feeder	1
3	Roll Forming Machine	1
4	Electrical control system	1
5	Hydraulic Guillotin	1
6	Electric seamer	1
7	Receiving table	1
8	Bending machine	1
9	Spare parts	1
10	Technical Manual	1
11	Customized container	1

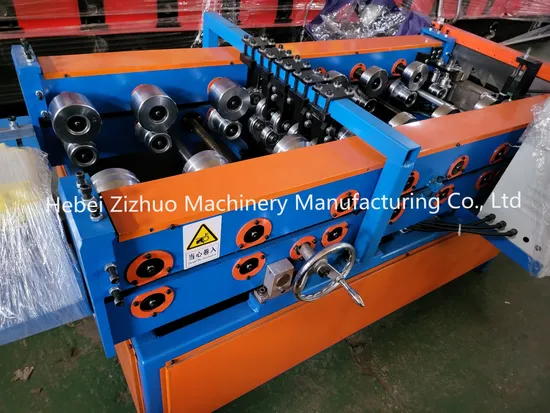

3.Photos of Machine:Manual cutting standing seam roll former Auto cutting standing seam roll former 4. Technology parameters:The weight of the machine is about 1.8tons)The total dimension of machine:2500(L)*1500(W)*1200mm(H)4.1 4 TONS Manual uncoiler: 1SETCapacity of uncoiler:3-4tonsExpansion of segment:manualRotation of segment:manualNumber of segment:4Range of segment expansion:480-520mm4.2 Feeding Entrance and adjustable wheelQty: 14.3Main forming machineIt adopts a steel wall structure with chain transmission.
The machine base is made of welded steel with destressing treatmentCoil thickness:0.5-0.8mmMain motor type: 3-phase asynchronous motorMain motor power: 2.2KW Forming speed: 0-15m/min(without cutting)Approx.6 groups rollers)Roller : S45C with heat treatment, and the surface is being hard chrome coated)Shaft: Shafts of rollers are tooled by a grinding machine two times to ensure the precision of the final product. Transmission type: by gearbox and chain Qty: 14.4Hydraulic System:Material of blade: Cr12Length measuring: Automatic encoder length measuringWay of cutting: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start4.5Product support frameSize:L 3m x W .0.7mQty:24.6PLC Control System(The whole line is controlled by PLC and touch screen. The PLC system is with a high-speed communication module, it is easy to operate.The technical data and system parameters can be set by touch screen.)Control the quantity & length& cutting length automatically)The Machine will be stopped while it is cuttingAutomatic Length measurement and quantity counting (precision 3m+/-2mm)Voltage:110volt 60Hz or 220volt 60Hz (As per buyer`s request)4.7Auto seamer:

No.	Item		Parameter	Remark
1	Suitable material	Type	Color steel, galvanized steel
		Thickness(mm)	0.35-0.7mm	Test material standard 0.45mm
		Yield strength (Mpa)	≤300mm
		Width (mm)	according to design
2	Forming speed		About 10-15 m/m	Not include cutting time
3	Motor of forming system (kw)		4kw	Depends on final design
4	Hydraulic station power(kw)		2.2kw	Depends on final design
5	Voltage requirements		AC380V, 50Hz, 3phase	According to the customer's request
6	Roller material		#45 steel with heat treatment 58-62 degrees
7	Shaft diameter		70mm solid
8	Control system		PLC with touchscreen	Delta brand
