Advanced Concrete Mixer and Pump Machine for Effortless Mixing

Product Description

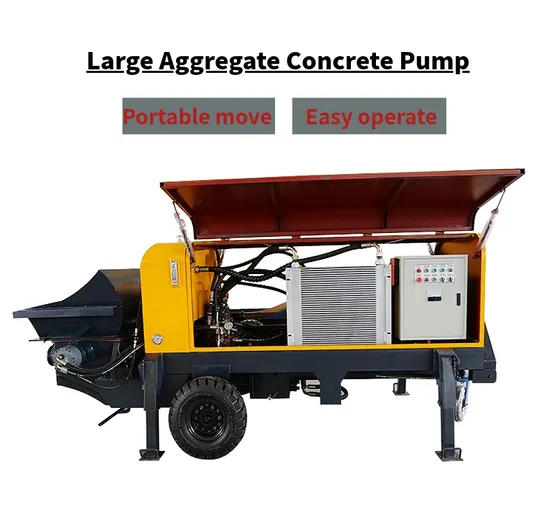

Concrete Feeding Concrete Mixer Machine with Concrete Pump Small Concrete Pump Machine Diesel Small Concrete pump machine, 25m3/h capacity, pumping height 70m. Equipped 66kw diesel engine, more stronger power than old small pump, improved the continues pumping performance.New design, good Choice!
Product Description

No.	ITEM	UNIT	UR-CP30D	UR-CP40D	UR-CP50D
1	Processing Aggregate sizes	mm	≤30	≤30	≤40
2	Capacity	m³/h	15	25	40
3	Vertical transport distance	m	25mts	90mts	100mts
4	Horizontal transport distance	m	90mts	180mts	200mts
5	Hopper height	mm	1100	1100	1200
6	Working pressure	mpa	10	12.5	12
7	Diesel engine power	kw	46	66	70
8	Dimension	mm	3500x1300x1650	4250x1620x1620	4550x1830x1720
9	Total Weight	kg	1650	2600	3200

Product Detailes
Packaging & Shipping
After Sales Service
1. We have done testing machine before shipping.
2. Support video operating indication, english manual, online technical support.
3. We promise 12 months warranty. Wearing parts not includes.
4. Necessary installation service if required. But you should pay the person flight cost and salary $100/day.
Company Profile
FAQ
1. How to choose the pumps?
R: According your demands working capacity, have small model 7m3/h, large models 15m3/h,25m3/h,35-40m3/h. Confirm your capacity!
R: according your pumping height and length demands.
R: according power - 2types, Diesel & Motor power, tell us what you prefer?
2. What the minimum order qty? the delivery time?
R: Qty 1PC at least.
R: 1pc pump machine within 7-10days, 2-5pcs pumps within 10-15days.
3. Why you choose us?
R: we use all Brand equipments, such as Huadong Diesel engine, Japan pump,brand motor and electrics, cylinder, heavy steel. Ensure
the pump with longer use life.
R: so do not compare only price, choose high quality choose us.
4. How long the Warranty? how you do the after-sales service?
R: we promise 12 months warranty.
R: support video operating indication, English manual,online technical support.

---
