2025 Hualong Machinery Italian Software Hknc-825 Axis CNC Bridge Saw Stone Cutting Machine for Granite Marble Quartz Porcelain Countertop Tiles Making Machine

Product Description

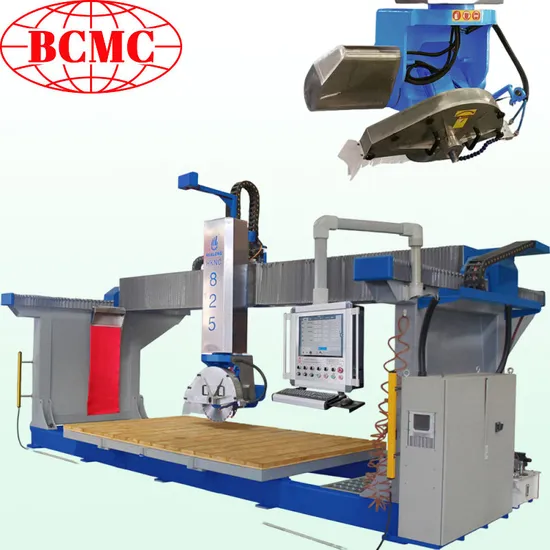

The product BCNC-825 V-smart 6 type 5 axis linkage cnc bridge stone cutting and milling machine was equiped with wolrd famous itlian esa digital servo motor, siemens and schnider electronic components. The series is suitable for various stone cutting, which can process the granite, marble and other stone slabs in precise and beauty.
The machine is easily to operate and works steadily. Owns 5 linkage control, can be fluently moves in X, Y, Z axis and the blade can be rotate in 360 degrees horizontal and 90 degrees vertical. It has the visible touch screen control system on the left of the machine so you can command it through the system panel to cut the stones under your control manual or upload the files to the computer equiped on the machine to make it automatic cutting for you. The files can upload to the machine through the way of USB port and wifi connection which make it easily to interaction. Our machine has the photographing function. This will help you to positioning the cuting area before work and make cutting easily!
360 degree rotate and tilt from 0-90 for chamfering work

Main Features: Equiped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Updating with vacuum lifter to move the slab easily. CNC 19" touch screen control system. Easy control and easy interactivity. Photograohing camera equiped. Helps for slab positioning and typeseting. Save time and reduce the waste of processing. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine.

TECHNICAL DATA of HKNC-825
Configuration	Diameter of saw blade	mm	Φ400 - Φ800
	Dimension of working platform	mm	3500 x 2100
	Power of main motor	kw	22
	Power of tool slide reciprocating motor	kw	1.15
	Power of crossbeam shifting motor	kw	1.15
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	0.85
	Gross power	kw	27.35
Main Performance Parameters	Max. length of horizontal cutting	mm	3500
	Max. thickness of cutting	mm	290
	Max. lifting travel of cutter	mm	650
	Water consumption	m3/h	2
Measurement	Gross weight	kw	6500
	Dimension (L x W x H)	cm	6800x3400x3900

Detailed Information For Spare Parts:
Control system
Itlian ESA CNC control system with touch screen for computer setting and controlling easily and visiable. Make your complicated work easily and high effficience. No need to switch from PC to machine frequently.
Slab Image Capture (Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through theacquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
Tool Measuring System (Optional)
Blade diameter or tool length presetter enable the machine to process the stone more accurately.
Digital Servomotor
Itlian digital servomotor. Using a kind of permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with ESA CNC control system, creates a reliable controlling power for X, Y, Z, A and C axes.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Electro-spindle
High quality Electro-spindle controlled by an inverter allowing the adjustment of revolutions from 0 to 6000 rpm, so granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Linear Guide
Hiwin linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Safeguard Door(Optional)
Worked by infrared induction to ensure safe working during all mahining phases.
Hand wheel(Optional)
For zero point manual setting and teaching work.
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
