| US$4,000.00-6,000.00 | 1 Piece (MOQ) |

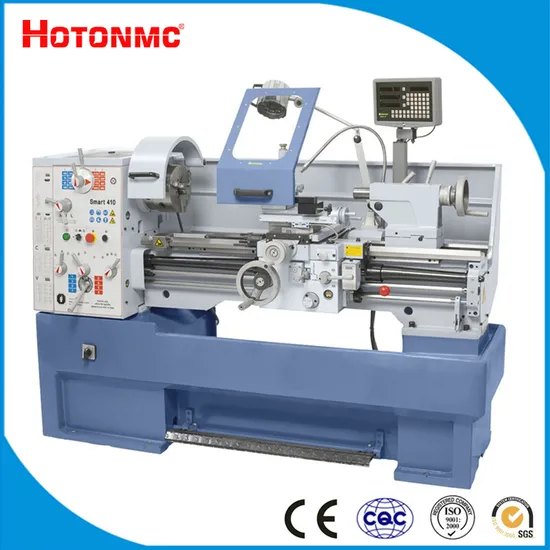

| SPECIFICATION | MODEL | |||||||||||
| C6241×1000 | C6241V×1500 | C6246×2000 | C6246V ×1000 | C6246V ×1500 | C6246V ×2000 | |||||||
| Capacity | ||||||||||||
| Swing over bed | 410 | 460 | ||||||||||
| Swing over cross slide | 220 | 270 | ||||||||||
| Swing in gap diameter | 640 | 690 | ||||||||||
| Distance between centers | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | ||||||
| Valid length of gap | 165mm | |||||||||||
| Width of bed | 300mm | |||||||||||
| Headstock | ||||||||||||
| Spindle nose | D1-6 | |||||||||||
| Spindle bore | 58mm | |||||||||||
| Taper of spindle bore | No.6 Morse | |||||||||||
| Range of spindle speed | 12 changes, 25~2000r/min | |||||||||||
| Feeds and threads | ||||||||||||
| Compound rest travel | 128mm | |||||||||||
| Cross slide travel | 285mm | |||||||||||
| Max.section of tool | 25×25mm | |||||||||||
| Lead screw thread | 6mm or 4T.P.I. | |||||||||||
| Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | |||||||||||
| Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | |||||||||||
| Threads metric pitches | 41 kinds, 0.1~14mm | |||||||||||
| Threads imperial pitches | 60 kinds, 2~112T.P.I. | |||||||||||
| Threads diametral pitches | 50 kinds, 4~112DP | |||||||||||
| Threads module pitches | 34 kinds, 0.1~7MP | |||||||||||
| Tailstock | ||||||||||||
| Quill diameter | 60mm | |||||||||||
| Quill travel | 130mm | |||||||||||
| Quill taper | No.4 Morse | |||||||||||
| Motor | ||||||||||||
| Main motor power | 5.5kW(7.5HP) 3PH | |||||||||||
| Coolant pump power | 0.1kW(1/8HP) 3PH | |||||||||||
| Dimension and weight | ||||||||||||
| Overall dimension(L×W×H) | 220×108×134 | 275×108×13 | 325×108×134 | 220×108 ×137 | 275×108 ×137 | 325×108 ×137 | ||||||
| Packing size(L×W×H) | 225×112×162 | 280×112×156 | 330×113×156 | 225×112 ×162 | 280×112 ×156 | 330×113 ×156 | ||||||
| Net weight | 1580kg | 1745kg | 1900kg | 1645kg | 1810kg | 1965kg | ||||||
| Gross weight | 1845kg | 2050kg | 2230kg | 1910kg | 2115kg | 2295kg | ||||||
| STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES |
| 3 jaw chuck Sleeve and center Oil gun | 4 jaw chuck and adapter Steady rest Follow rest Driving plate Face plate Working light Foot brake system Coolant system |
