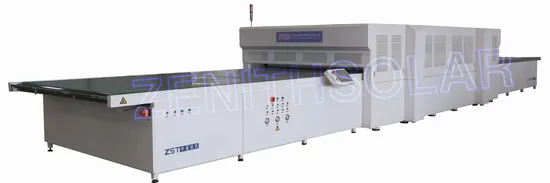

Solar Laminating Fully Automatic Double Chamber Laminator Machine

US$148,000.00-156,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZST-AYZ-22-45D
Integrated Design
All Part Inside
Germany Vacuum Pump
Vacuum Efficiency Is High
Smoke-Free Work
Environmental Protection
Save Power
Save Power More 30%
Number of Cells
72PCS
Condition
New
Certification
CE, ISO
Transport Package
Frame Container
Specification
ZST-AYZ-22-45D
Trademark
ZENITHSOLAR
Origin
China
HS Code
848640
Production Capacity
100set/Year

Product Description

Negotiate the price according to specific circumstances
List of main part
Parts Name Model Manufacturer Mark
Vacuum control valve GIQ-40 Shanghai Vacuum Valve Manufacturing Co., Ltd. CE
AC contactor Schneider EZD\C65\LC France Schneider CE/UL
PLC Controller PLC FB5-60MA Taiwan Yonghong CE/UL
A/D Module EM231 Taiwan Yonghong CE/UL
Touch-screen View 8" Kinco Electric (Shenzhen) Ltd., CE
Digit Motor S370Y38UH60
S750Y38URC60
S370Y38DRC60 JSCC International Group CE
Button switch APBB series France Schneider CE/UL
Photoelectric switch FM12-T02N-C31P2 Germany Bedook CE/UL
Vacuum Meter 0~ -0.1Mpa Shanghai Vacuum Mete CE
Alarm lamp F/RGG Korea CE
Solid State Relay HHG1-3/032F-38 Chinese DeLiXi Group CE
Air inflation Valve KSD-08 Taiwan KSD Group CE
Vacuum Filter F200 Germany BUSCH CE/UL
Draw Near Switch BN-M1204N-C11P2 Germany Bedook CE/UL
Hydraulic Station MSH90L-2 Taiwan Three Phase Inductoin CE
Hydraulic cylinder YA80-200 Wuxi TongNeng Metallurgy CE
Pneumatic solenoid valve AD-20-N-G2-AC220V CS-FLUID POWER CO.,LTD. CE
Hot oil pump RY65-40-200 wu'an Hongtai Hot Oil Pump Factory CE
Vacuum Pump RA0100F Germany Busch CE/UL
Conveyor Belt 2150*7600*3 Shanghai Dongyi Tape Company
Si silica gel High resistance 4mm Jiangyin Keqiang Tape Company
High temperature conveyor belt Thickness 0.25mm Jiangsu Taizhou
